Description

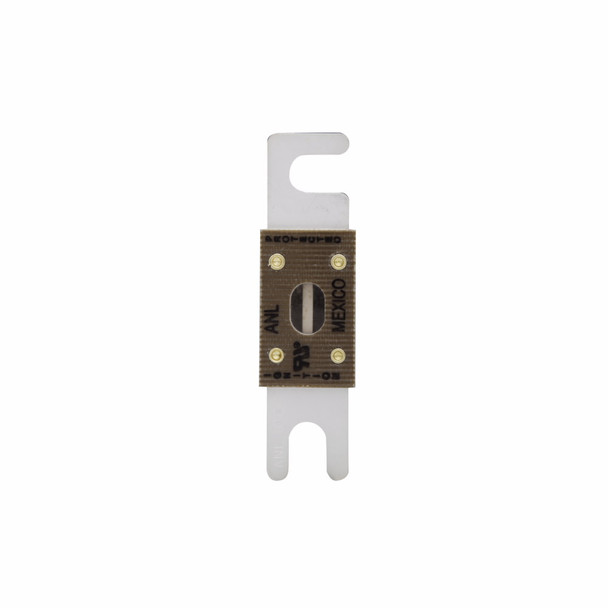

Bussmann ANL-675 Low Voltage Limiter
Bussmann Aircraft Circuit Limiter, Low Voltage Non-Indicating Non-Time Delay, Series: ANL, 675 A, 32 VAC/80 VDC, 6/2.7 kAIC Interrupt, Blade End Terminal, Stud Mount, Flat Body Type, Single Element, Melamine, 3-3/16 in L x 7/8 in W Body Size
Additional Description: BUSS-ANL-675 BUSS AIRCRAFT LIMITER
Catalog Description: Eaton Bussmann series ANL circuit limiter, 675 A, 6 kAIC at 32 Vac, 2.7 kAIC at 80 Vdc, Blade end X blade end, Stud, Non indicating
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 675 |
| Amperage Rating | 675 A |
| Body Type | Flat |
| Indicating/Non-Indicating | Indicating |
| Interrupt Rating | 2.7/6 |
| Interrupt Rating | 6/2.7 |
| Interrupt Rating | 6/2.7 kAIC |
| Material | Melamine |
| Mounting type | Stud |
| Series | ANL |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | Circuit Limiting Non-Indicating Non-Time Delay |
| Type | Circuit Limiting Non-Time Delay |
| Type | Low Voltage Non-Indicating Non-Time Delay |
| Voltage Rating | 32 VAC/80 VDC |
