Description

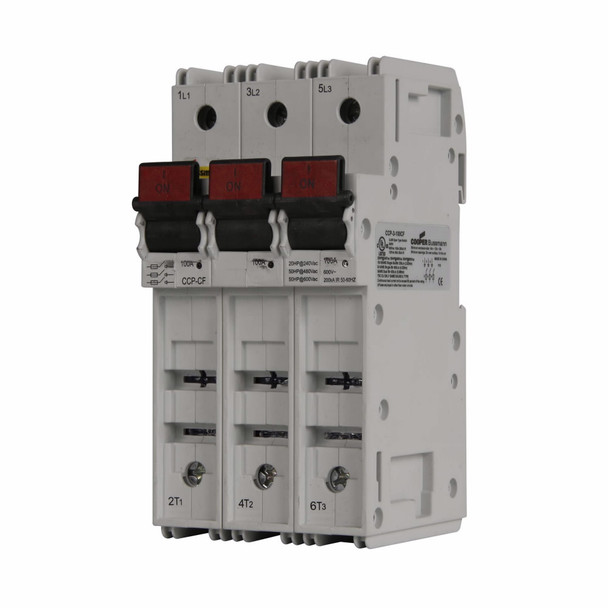

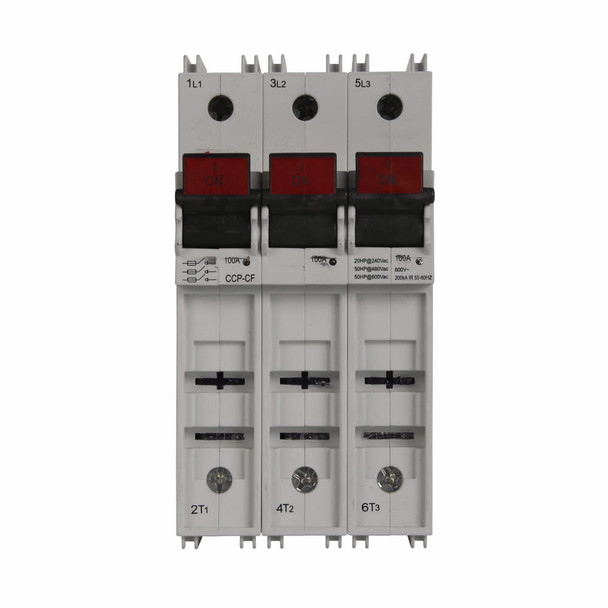

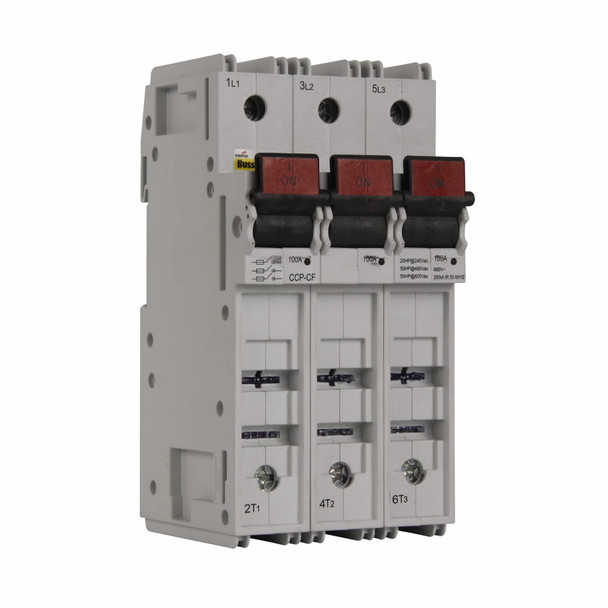

Bussmann CCP-3-100CF Compact Circuit Protector
Bussmann Compact Circuit Protector, 600 VAC/125 VDC, 100 A, 3 Pole, CUBEFuse Class J Fuse, 10 to 8 AWG Wire, Single Solid Copper Wire, DIN Rail Mounting, Padlockable Handle Operator, -20 to 75 deg C Operating, 0.99 in Width, 5.7 in Height, 3-1/2 in Depth
Additional Description: BUSS-CCP-3-100CF 3 Pole Comp Ckt Protector 600Vdc 100A
Catalog Description: Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 100A, UL98 fusible disconnect, Three-pole
Specifications
| UNSPSC | 39122233 |
|---|---|
| Amperage Rating | 100 |
| Amperage Rating | 100 A |
| Depth | 3-1/2 |
| Depth | 3-1/2 in |
| Fuse Type | CUBEFuse Class J |
| Fuse Type | CUBEFuse™ Class J |
| Height | 5.7 |
| Height | 5.7 in |
| Mounting type | DIN Rail |
| Number of Poles | 3 |
| Operating Temperature | -20 to 75 |
| Operating Temperature | -20 to 75 deg C |
| Operator | Padlockable Handle |
| Voltage Rating | 600 VAC/125 VDC |
| Width | 0.99 |
| Width | 0.99 in |
| Wire Size | 10 to 8 |
| Wire Size | 10 to 8 AWG |
| Wire Type | Single Solid Copper |
