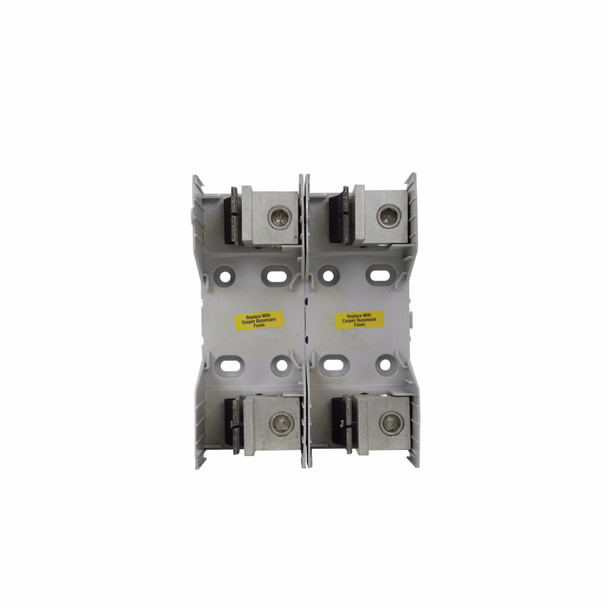

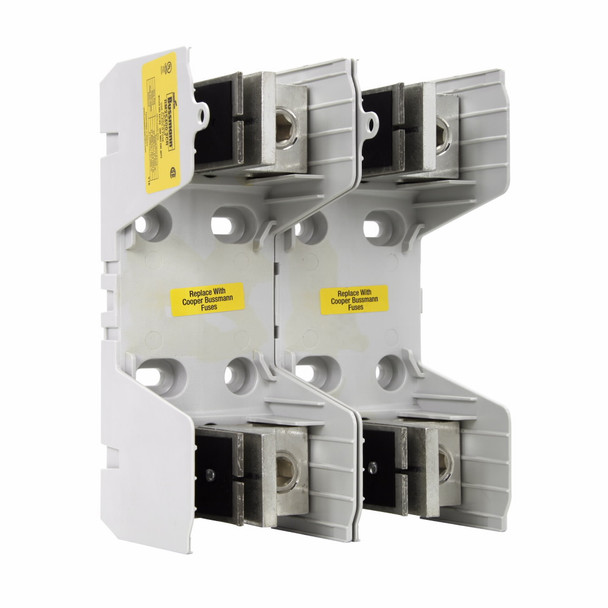

Bussmann RM25100-2CR Fuse Block
Bussmann Fuse Block, Modular, Series: RM Series, 250 V, 70 to 100 A, 2 Pole, Class: R, Knife Blade End, 1/0 to 3 AWG, (2) 4 to 6 AWG copper, 4 to 6 AWG, (2) 8 AWG Cu, 8 AWG, (2) 10 to 14 AWG Cu, 10 to 14 AWG Cu, 10 to 12 AWG Al Solid/Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 6 in L x 4 in W x 2.8 in H
Additional Description: BUSS-RM25100-2CR 100 amp class R fuse holder 250V 2 pole
Catalog Description: Eaton Bussmann Series RM modular fuse block, CR, 70-100 A, Two-pole, Class R, Knife blade end x knife blade end, 250 V
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 100 |
| Amperage Rating | 70 to 100 |
| Amperage Rating | 70 to 100 A |
| Class | R |
| Connection type | Box Lug |
| Connection type | Knife Blade End |
| Dimensions | 6 in L x 4 in W x 2.8 in H |
| Dimensions | 7.2 in L x 4 in W x 2.8 in H |
| Fuse Diameter | 1.06/1.16 |
| Fuse Length | 5.88 |
| Material | Thermoplastic |
| Mounting type | Hole |
| Mounting type | Panel |
| Number of Poles | 2 |
| Series | RM Series |
| Series | RM250 |
| Suitable For Use With | Knife Blade Cartridge Fuse |
| Suitable For Use With | Low-Peak™ LPN-RK-SP and LPN-RK-SPI, Fusetron™ FRN-R, Limitron™ KTN-R Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Type | Modular Knife Blade |
| Voltage Rating | 250 |
| Voltage Rating | 250 V |
| Wire Size | 1 to 3 AWG, 4 to 6 AWG, 8 AWG |
| Wire Size | 1/0 to 3 AWG, (2) 4 to 6 AWG copper, 4 to 6 AWG, (2) 8 AWG Cu, 8 AWG, (2) 10 to 14 AWG Cu, 10 to 14 AWG Cu, 10 to 12 AWG Al Solid/Stranded |
| Wire Size | 14 to 1/0 |
