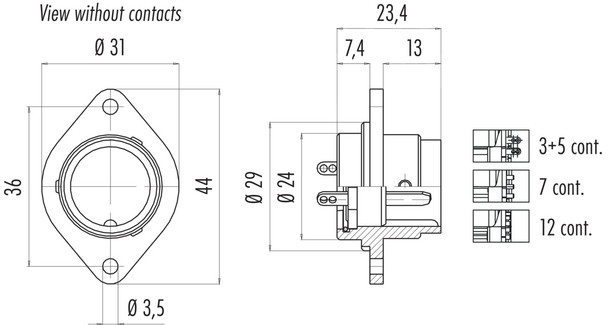

These bayonet connectors comply with protection class IP40 and offer 3 to 12 contacts with a rated current of 5 A and 10 A (depending on the number of contacts). Cable and flange connectors have a solder connection and an operating temperature range from -40 °C to +85 °C. Flanged plug/flange socket of the 690 series has the dimensions 31mm x 44mm, a shieldable version is available. More than 500 mating cycles are possible.
General Features| Part no. | 09 0469 00 12 |
|---|

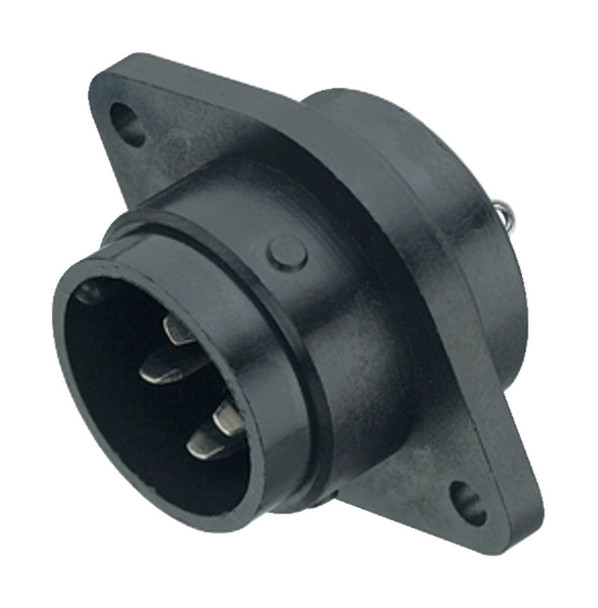

| Connector design | Male panel mount connector |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | Bayonet |
|---|
| Termination | solder |
|---|
| Degree of protection | IP40 |
|---|
| Cross-sectional area | 0.75 mm² / AWG 18 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 50 Mating cycles |
|---|
| Weight (g) | 14.94 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 125 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 5.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PBT |
|---|
| Contact body material | PBT (UL94 V-0) |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | CuSnZn (Optalloy) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | fab434a9-f264-4c40-b175-9d3f3e94feb8 |
|---|
