Description

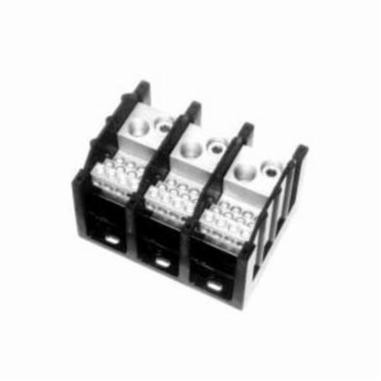

Bussmann 16023-3 Power Terminal Block
Bussmann Magnum Power Distribution Block, Barrier Standard, Series: 160, 600 VAC/VDC, 310 A, 3 Pole, (1) Screw Primary Connections/Pole, (6) Screw Secondary Connection/Pole, 6 AWG to 350 kcmil Al Line, (6) 1 4 to 4 AWG Cu, 12 to 4 AWG Al Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 5.37 in L x 2.8 in W x 2.12 in H
Additional Description: BUSS-16023-3 BUSS FUSEBLOCK
Catalog Description: Eaton Bussmann series power distribution block, Flammability Rating UL 94-V0, 600 Vac, 600 Vdc, 310 A, Three-pole, Black, Molded Thermoplastic
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 310 |
| Amperage Rating | 310 A |
| Color | Black |
| Dimensions | 5.37 in L x 2.8 in W x 2.12 in H |
| Finish | Tin Plated |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 160 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier Standard |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 6 AWG to 350 kcmil |
| Wire Size | 6 AWG to 350 kcmil Al Line, (6) 1 4 to 4 AWG Cu, 12 to 4 AWG Al Load |
