Description

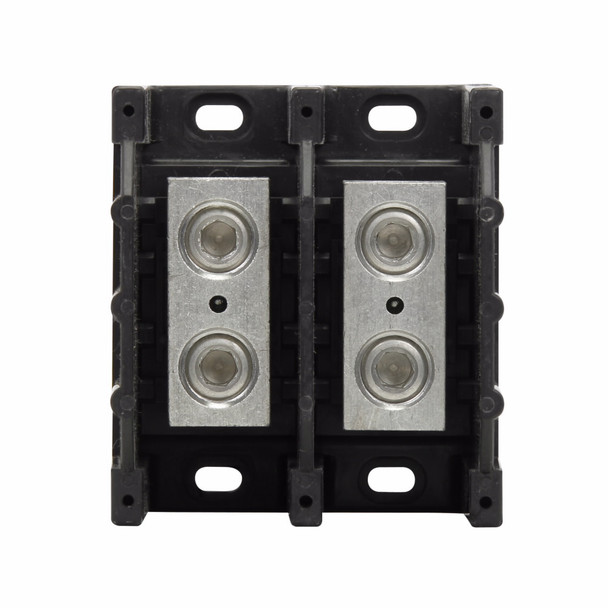

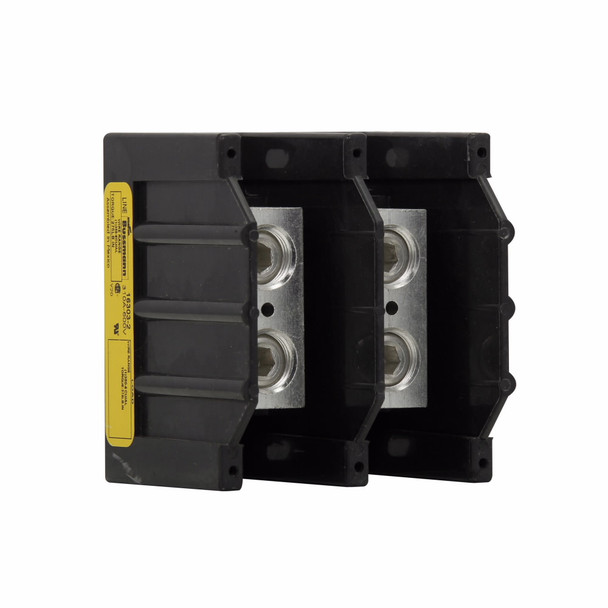

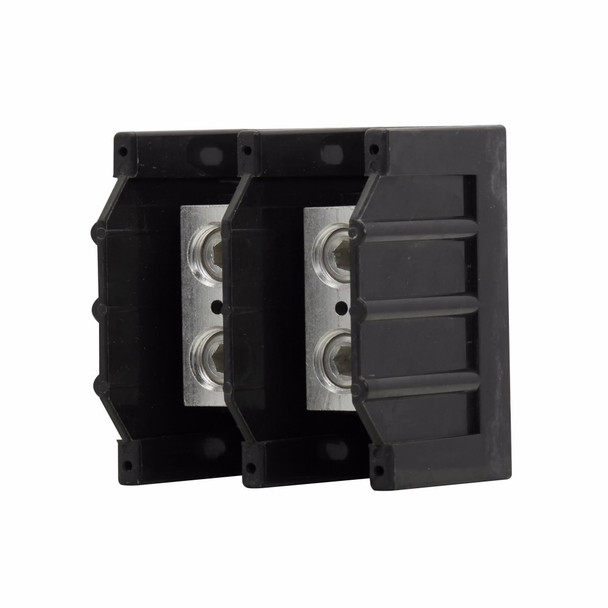

Bussmann 16303-2
Edison Power Terminal Block, Barrier/Splicer, Series: 163, 600 VAC/VDC, 310 A, 2 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 6 AWG to 350 kcmil Wire, 10 kA Short Circuit, Thermoplastic, Tin Plated, Black, 3.6 in L x 4 in W x 3.32 in H Dimensions
Additional Description: BUSS-16303-2 BUSS BLOCK WAS PTA2512
Catalog Description: Eaton Bussmann series power splicer block, 600 Vac, 600 Vdc, 310 A, Two-pole, Splicer, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 310 A |
| Color | Black |
| Dimensions | 3.6 in L x 4 in W x 3.32 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 2 |
| Series | 163 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier |
| Type | Barrier/Splicer |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 6 AWG to 350 kcmil |
| Wire Size | 6 AWG to 350 kcmil Cu Line/Load |
