Description

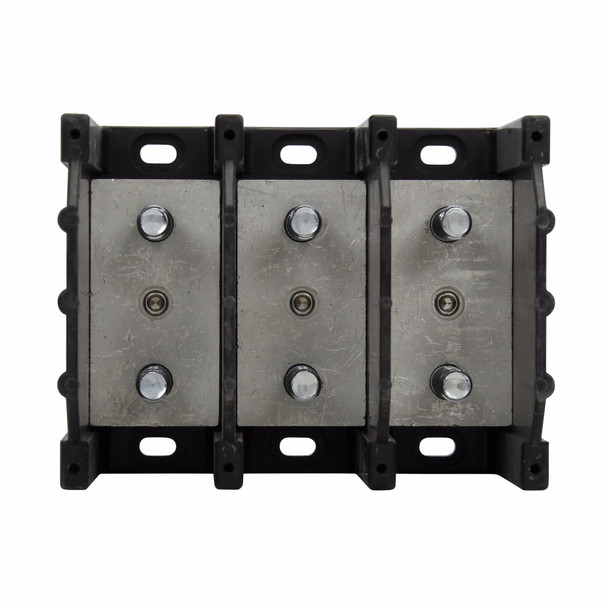

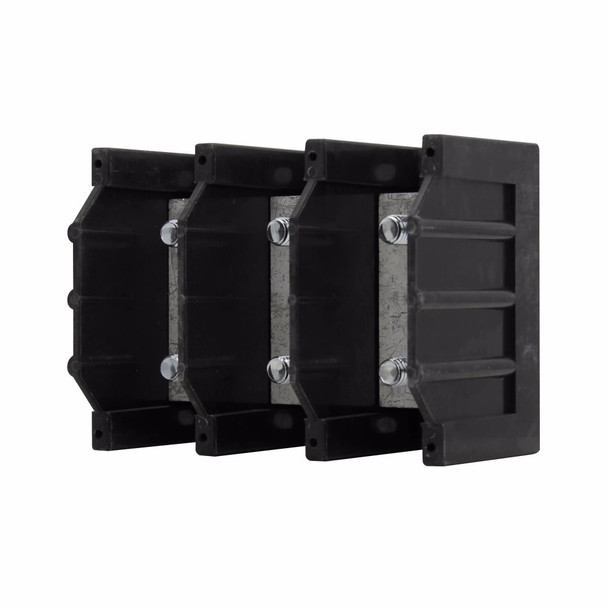

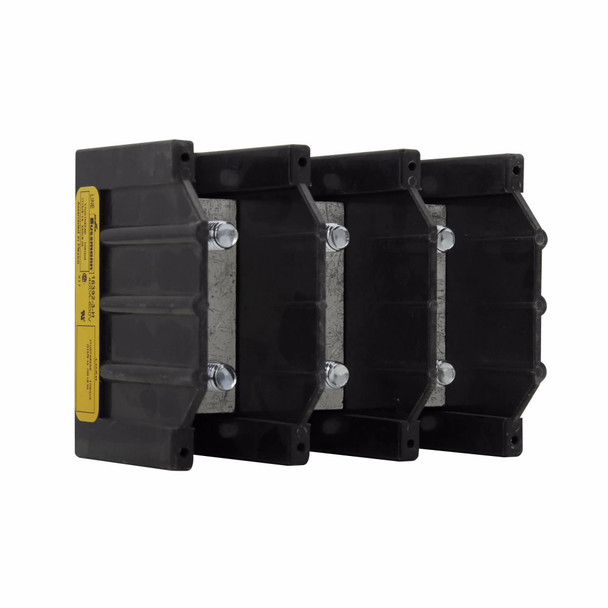

Bussmann 16392-3-H Power Distribution Terminal Block
Bussmann Power Terminal Block, Series: 163, 600 VAC/VDC, 400 A, 3 Pole, (1) 3/8-16 x 1-1/8 in Stud Primary Connections/Pole, (1) 3/8-16 x 1-1/8 in Stud Secondary Connection/Pole, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 4 in L x 3 in W x 5-1/2 in H
Additional Description: BUSS-16392-3-H PDB W/EXTRA HARDWARE
Catalog Description: Eaton Bussmann series power terminal block, Power terminal block, Three-pole - 16392-3-H
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 400 |
| Amperage Rating | 400 A |
| Color | Black |
| Dimensions | 4 in L x 3 in W x 5-1/2 in H |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 163 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 3/8-16 x 1-1/8 in Stud Line/Load |
