Description

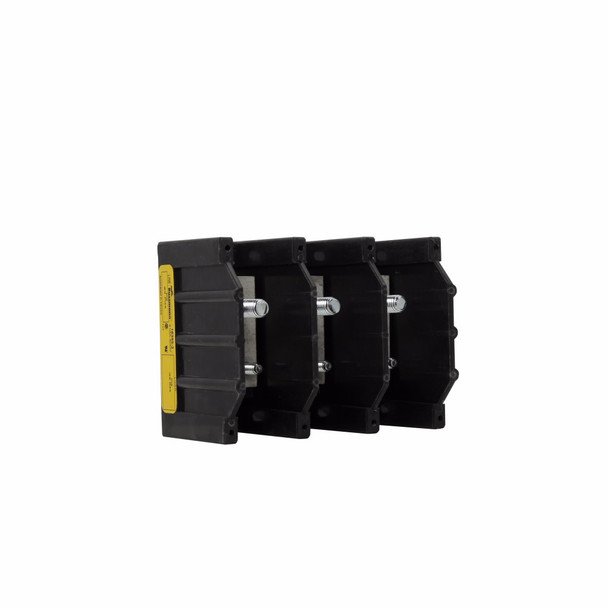

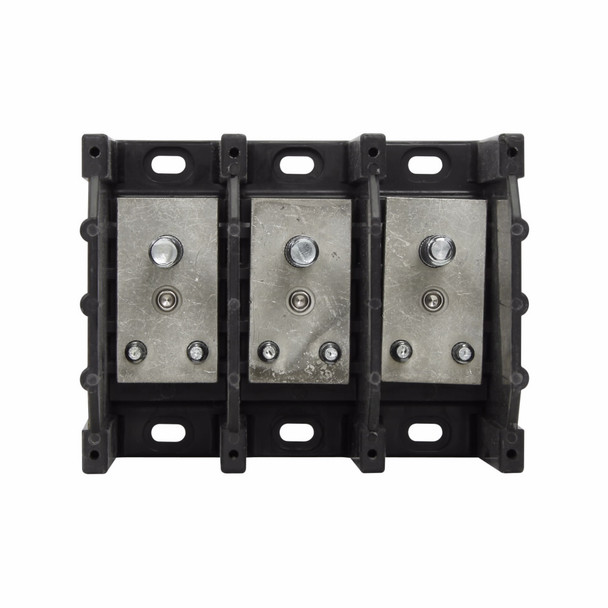

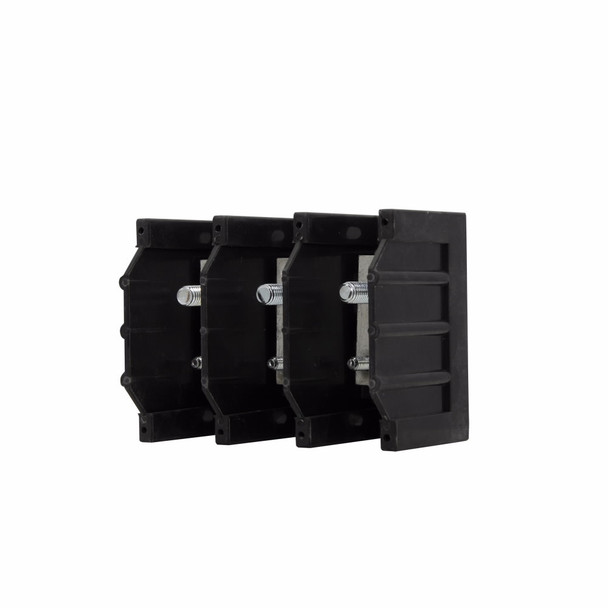

Bussmann 16395-3 Power Distribution Block
Bussmann Power Distribution Block, Barrier Stud to Stud, 600 VAC/VDC, 310 A, 3 Pole, (1) 3/8-16 x 1-7/16 in Stud, (2) 1/4-20 x 9/16 in Load Stud Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16395-3 POWER DIST. BLOCK 15PK
Catalog Description: Eaton Bussmann series power terminal block, 600 Vac, 600 Vdc, 310A, Three-pole, 3/8 In-16 TPI X 1-7/16 In Stud (Line), (2) 1/4 In-20 TPI X 9/16 In Stud (Load), SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 310 |
| Amperage Rating | 310 A |
| Color | Black |
| Dimensions | 5.21 in L x 4 in W x 3.32 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 163 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier Stud to Stud |
| Type | Barrier/Connector to Stud |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | (1) 3/8-16 x 1-7/16 in Stud, (2) 1/4-20 x 9/16 in Load Stud |
| Wire Size | 14 to 2/0 |
