Description

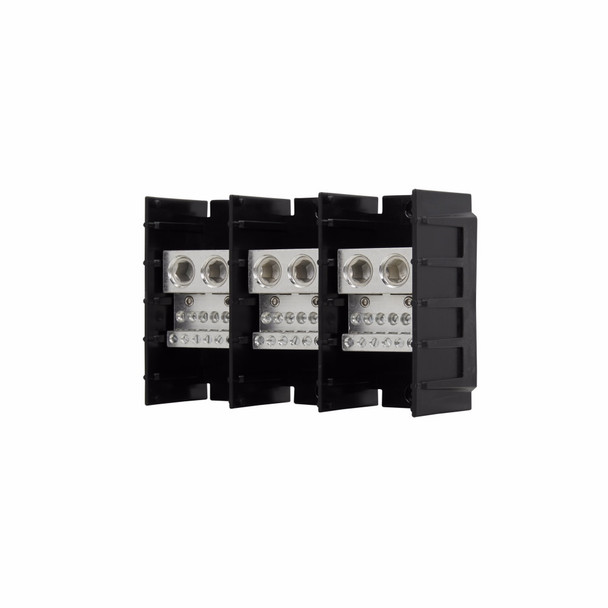

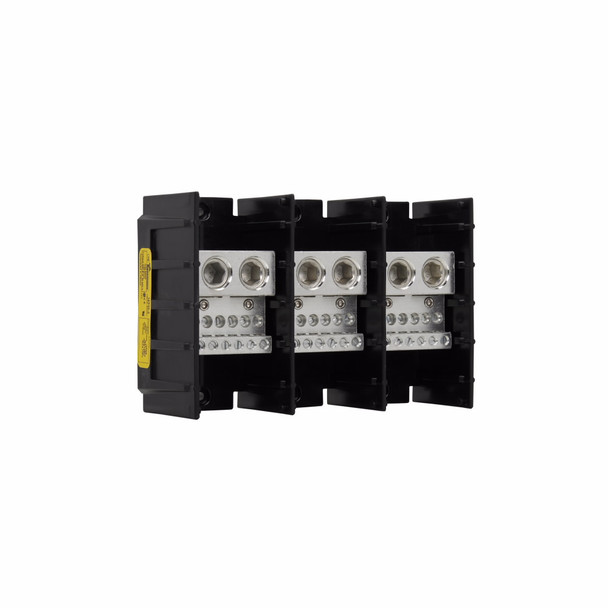

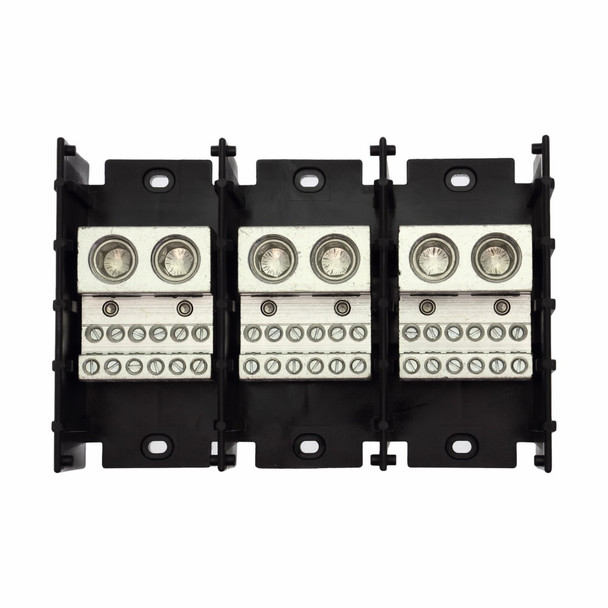

Bussmann 16530-3 Power Distribution Block
Bussmann Power Distribution Block, Standard, Series: 165, 600 VAC/VDC, 760 A, 3 Pole, 2 Primary Connections/Pole, 12 Secondary Connection/Pole, 6 AWG to 500 kcmil Cu/Al Line, 14 to 4 AWG Cu AL Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 8.48 in L x 5.5 in W x 2.93 in H

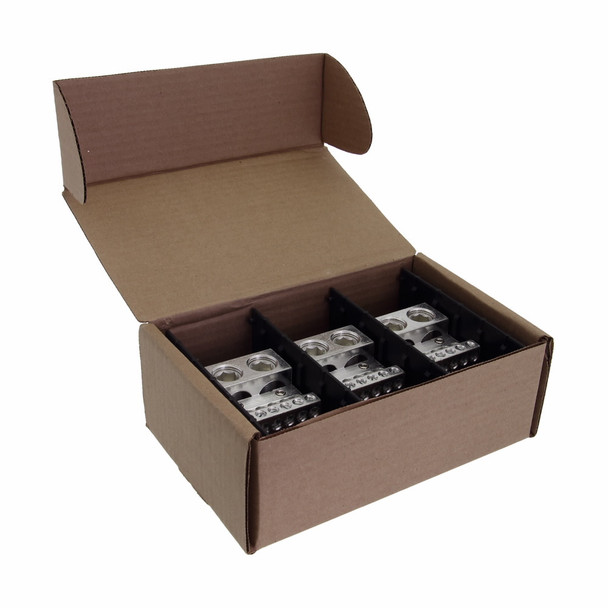

Additional Description: BUSS-16530-3 PWR TRM. BLK 6PK
Catalog Description: Eaton Bussmann series power distribution block, Flammability Rating UL 94-V0, 600 Vac, 600 Vdc, 760 A, Three-pole, Black, Molded Thermoplastic
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 760 |
| Amperage Rating | 760 A |
| Color | Black |
| Dimensions | 8.48 in L x 5.5 in W x 2.93 in H |
| Finish | Tin Plated |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 165 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier Standard |
| Type | Standard |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 6 AWG to 500 kcmil |
| Wire Size | 6 AWG to 500 kcmil Cu/Al Line, 14 to 4 AWG Cu AL Load |
