Description

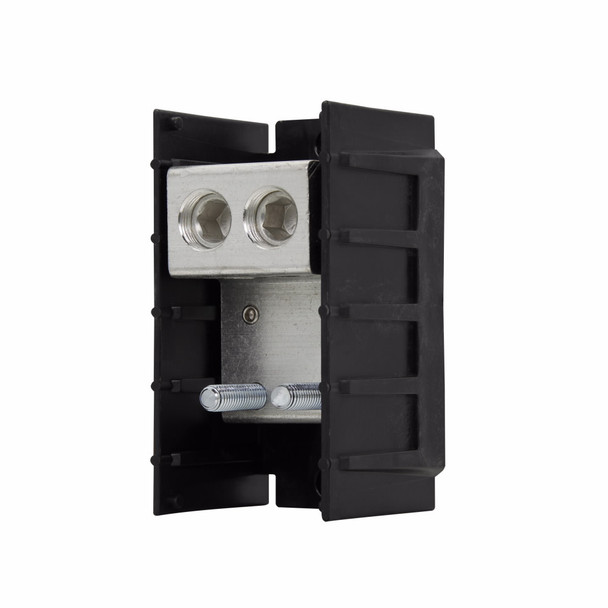

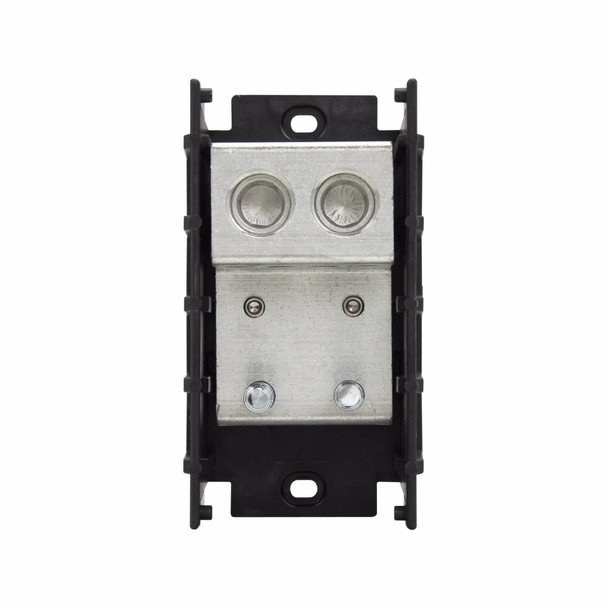

Bussmann 16541-3 Power Terminal Block
Bussmann Magnum Power Distribution Block, Barrier, Series: 165, 600 VAC/VDC, 380 A, 3 Pole, (1) Screw Primary Connections/Pole, (3) 1/4 in Quick Connect Secondary Connection/Pole, 6 AWG to 500 kcmil Cu/Al Line, (21) 14 to 6 AWG Cu/Al Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 8.48 in L x 5.5 in W x 2.93 in H
Additional Description: BUSS-16541-3 POWER DISTRIBUTION BLOCK SHIP TO CDC
Catalog Description: Eaton Bussmann series power distribution block, Three-pole
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 380 |
| Amperage Rating | 380 A |
| Color | Black |
| Dimensions | 8.48 in L x 5.5 in W x 2.93 in H |
| Finish | Tin Plated |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 165 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 6 AWG to 500 kcmil |
| Wire Size | 6 AWG to 500 kcmil Cu/Al Line, (21) 14 to 6 AWG Cu/Al Load |
