Description

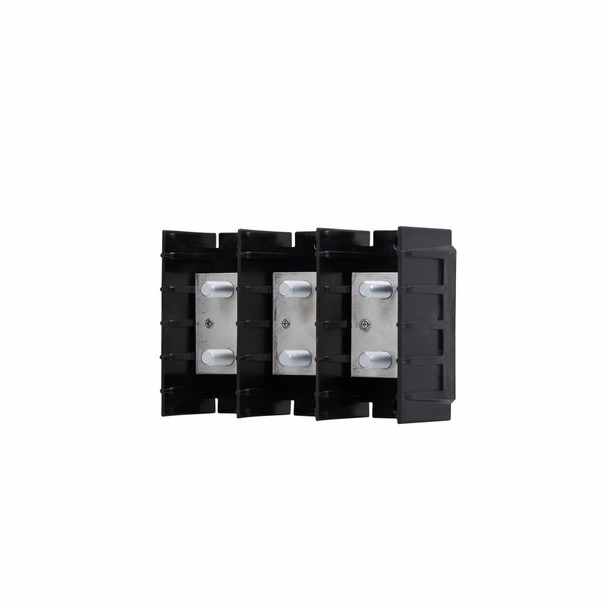

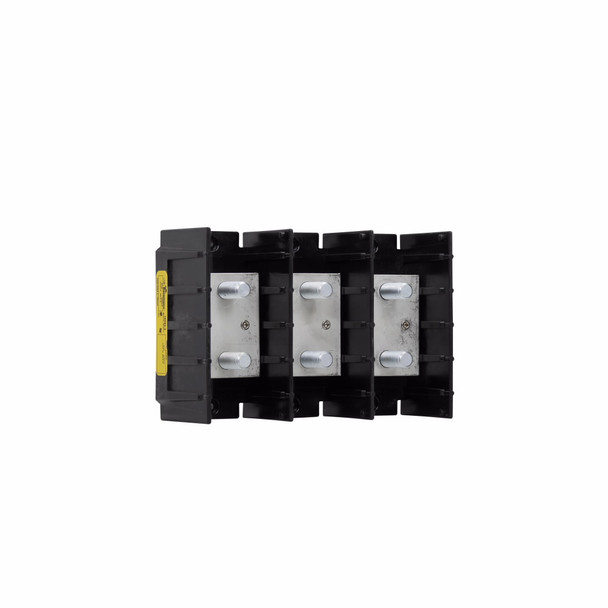

Bussmann 16593-3 Power Terminal Block
Bussmann Power Terminal Block, Series: 165, 600 VAC/VDC, 600 A, 3 Pole, (1) 1/2-13 x 1 in Stud Primary Connections/Pole, (1) 1/2-13 x 1 in Stud Secondary Connection/Pole, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 8.48 in L x 5.5 in W x 2.94 in H
Additional Description: BUSS-16593-3 (N) POWER DISTRIBUTION BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series power terminal block, Power terminal block, Three-pole - 16593-3
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 600 |
| Amperage Rating | 600 A |
| Color | Black |
| Dimensions | 8.48 in L x 5.5 in W x 2.93 in H |
| Dimensions | 8.48 in L x 5.5 in W x 2.94 in H |
| Finish | Tin Plated |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 165 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | 0 |
| Type | Connector to Stud |
| Type | Stud to Stud |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 1/2-13 x 1 in Stud |
