Description

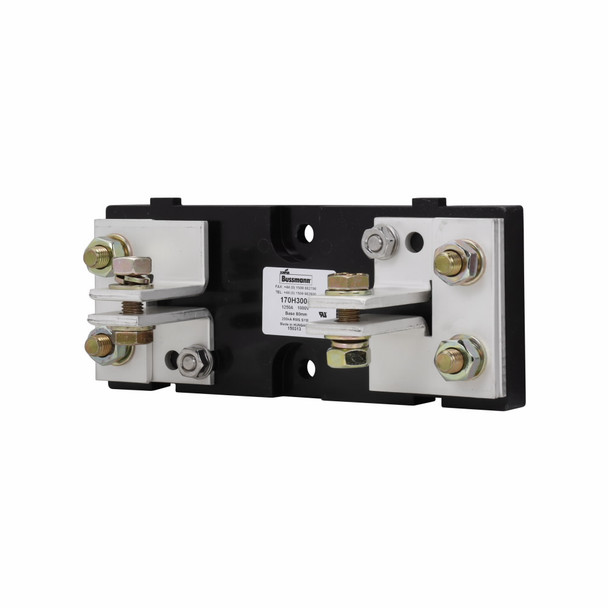

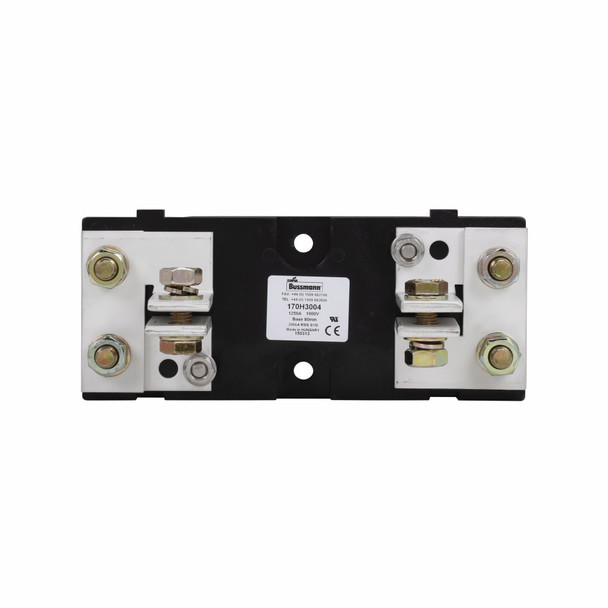

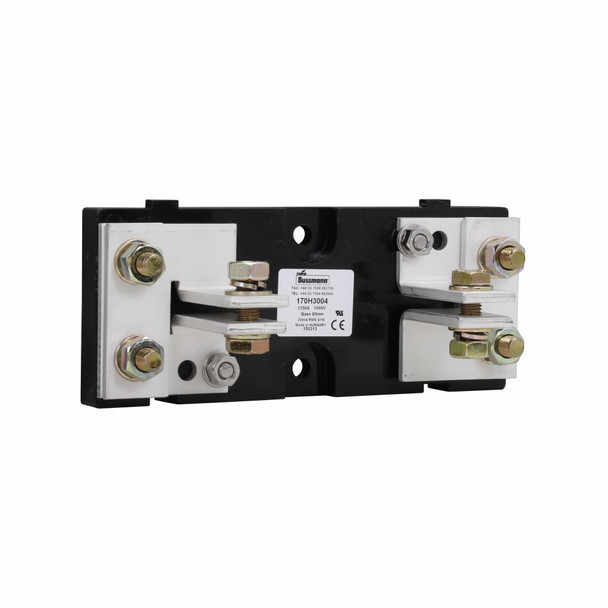

Bussmann 170H3004 Fuse Block
Bussmann Fuse Block, Fixed Center, Series: 170H, 690/700 V, 1250 A, 1 Pole, Stud Mount, For Use With: Typower ZILOX 80 mm Center Distance High Speed Fuse, 5.433 in L x 0.315 in W x 2.087 in H
Additional Description: BUSS-170H3004 BASE CA 80 1250A 1000V UR 43653
Catalog Description: Eaton Bussmann series high speed fuse base, 1000 Vac/Vdc, 1250A, fixed centre fuse base (80mm)
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 1250 |
| Amperage Rating | 1250 A |
| Dimensions | 5.433 in L x 0.315 in W x 2.087 in H |
| Mounting type | Stud |
| Number of Poles | 1 |
| Series | 170H |
| Suitable For Use With | Typower ZILOX 80 mm Center Distance High Speed Fuse |
| Type | Fixed Center |
| Voltage Rating | 1000 |
| Voltage Rating | 690/700 V |
