Description

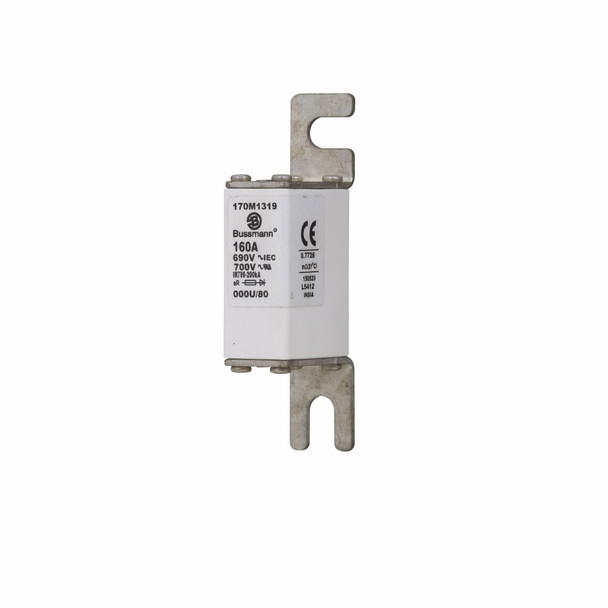

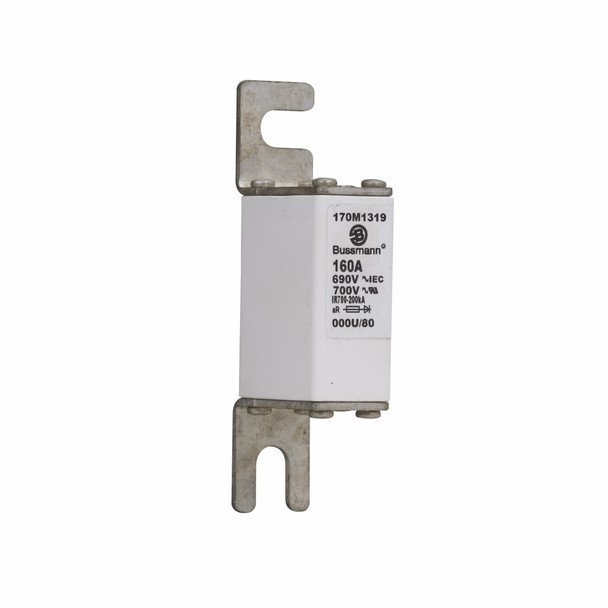

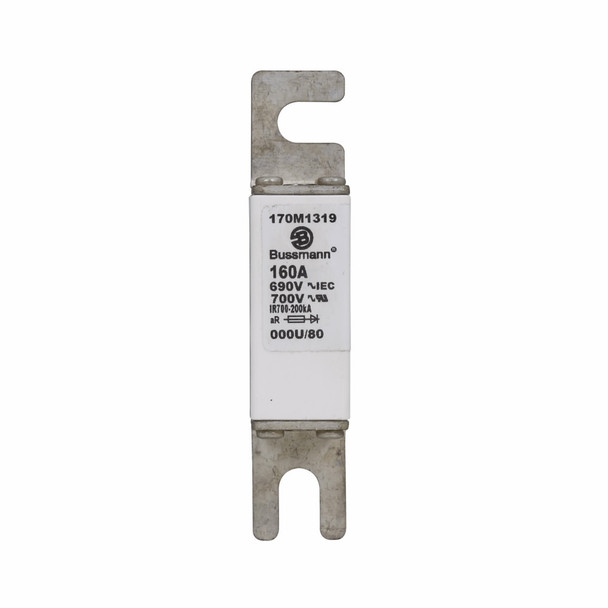

Bussmann 170M1319 High Speed Fuse
Bussmann High Speed Fuse, Type U/80, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 160 A, 690 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Blade End Terminal, DIN 43-653 Stud Mount, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body Size
Additional Description: BUSS-170M1319 FUSE 160A 690V 000U/80 AR UC
Catalog Description: Fuse-link, high speed, 160 A, AC 690 V, DIN 000, 21 x 40 x 100 mm, aR, DIN, IEC
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 160 |
| Amperage Rating | 160 A |
| Body Type | Square |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | DIN 43-653 Stud |
| Mounting type | Stud |
| Series | 170M |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | Type U/80 |
| Voltage Rating | 690 |
| Voltage Rating | 690 VAC |
| Voltage Rating | 690/700 |
