Description

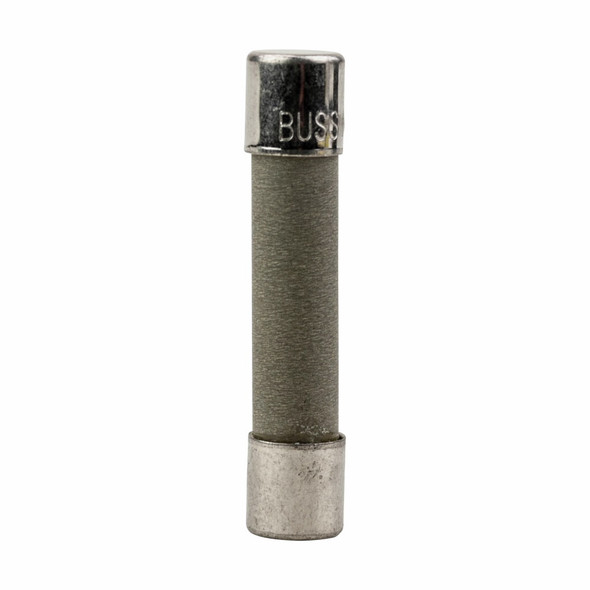

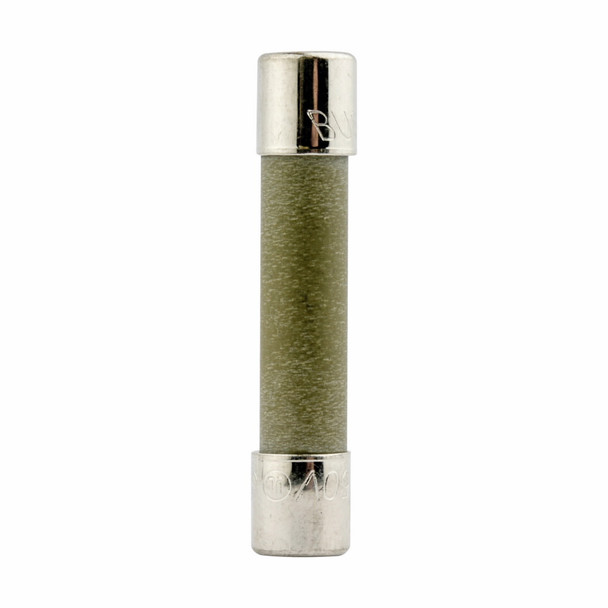

Bussmann ABC-5-R Fast Acting Fuse
Bussmann Fast Acting Fuse, Small Dimension, Series: ABC, Non-Indicating, Non-Rejection, 5 A, 250 VAC, 125 VDC, 200 A, 10 kA Interrupt, 4 hr, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body
Additional Description: BUSS-ABC-5-R (N) ABC 5A BUSS FA 5-IN BOX -R NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton ABC series Fast-acting fuse 5A, 250 Vac, 125 Vdc, 32 Vac (self certified), ABC-5-R
Specifications
| UNSPSC | 39121611 |
|---|---|
| Amperage Rating | 5 |
| Amperage Rating | 5 A |
| Body Type | Cylindrical |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 A, 10 kA |
| Material | Ceramic |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 4 hr, 60 min, 120 s |
| Series | ABC |
| Terminal Type | Ferrule |
| Type | Small Dimension |
| Voltage Rating | 250 VAC, 125 VDC |
