Description

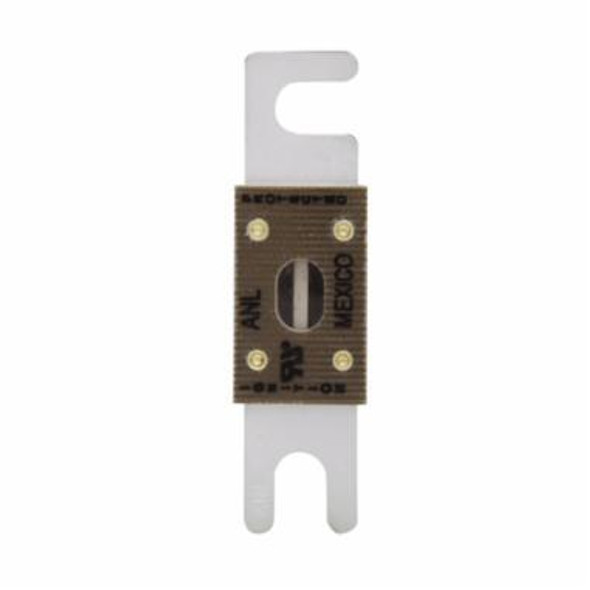

Bussmann ANL-325 Low Voltage Limiter
Bussmann Circuit Limiter Fuse, Low Voltage Non-Time Delay Non-Indicating, Series: ANL, 325 A, 32 VAC/80 VDC, 6/2.7 kAIC Interrupt, Bolted-Down Terminal, Stud Mount, Flat Body, Single Element, Melamine, 3-3/16 in L x 7/8 in W Body Size
Additional Description: BUSS-ANL-325 ANL CURRENT LIMITER FUSE - 325 AMP
Catalog Description: Eaton Bussmann series ANL circuit limiter, 325 A, 6 kaIC at 32 Vac, 2.7 kaIC at 80 Vdc, Blade end X blade end, Stud, Non indicating
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 325 |
| Amperage Rating | 325 A |
| Body Type | Flat |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 6/2.7 |
| Interrupt Rating | 6/2.7 kAIC |
| Material | Melamine |
| Mounting type | Stud |
| Series | ANL |
| Terminal Type | Blade |
| Terminal Type | Bolted-Down |
| Type | Circuit Limiting Non-Time Delay |
| Type | Low Voltage Non-Time Delay Non-Indicating |
| Voltage Rating | 32 VAC/80 VDC |
