Description

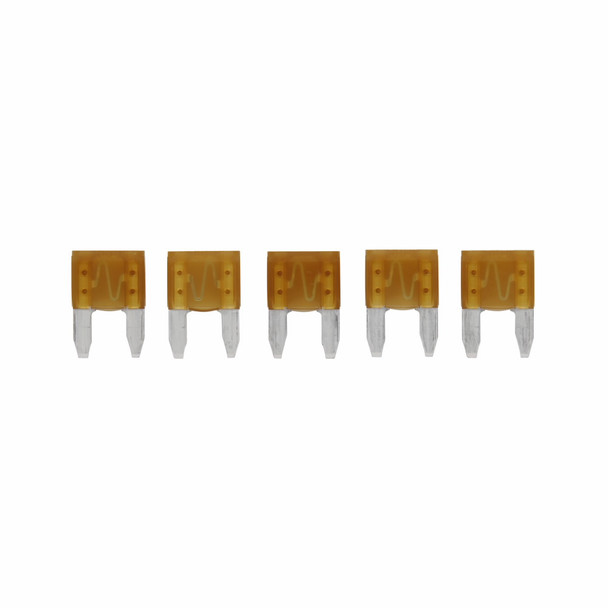

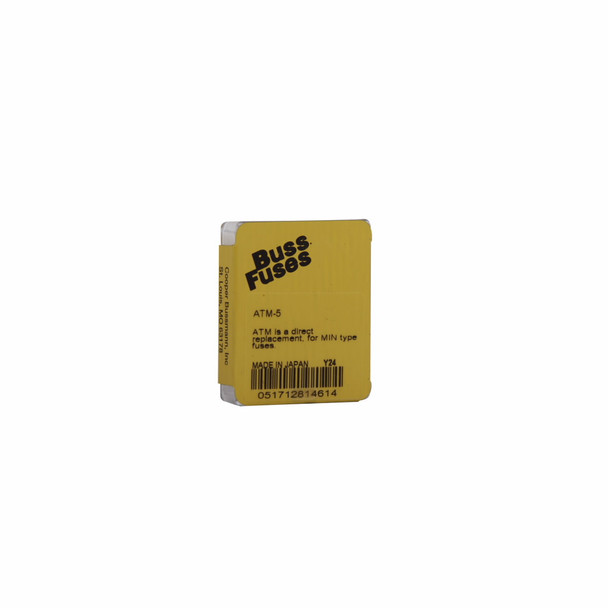

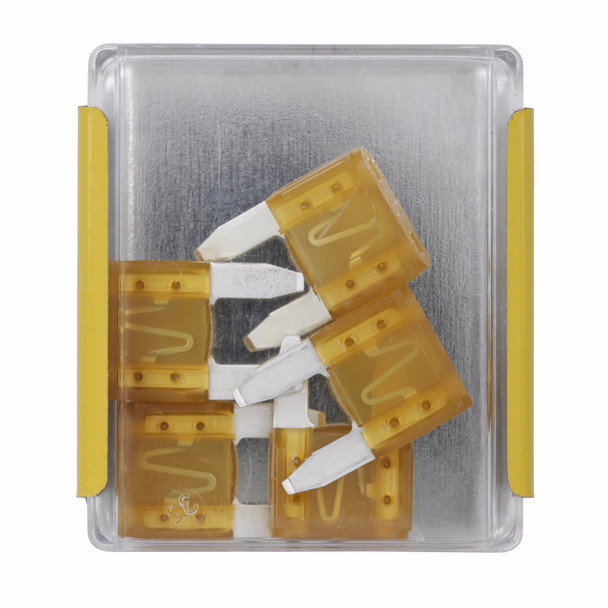

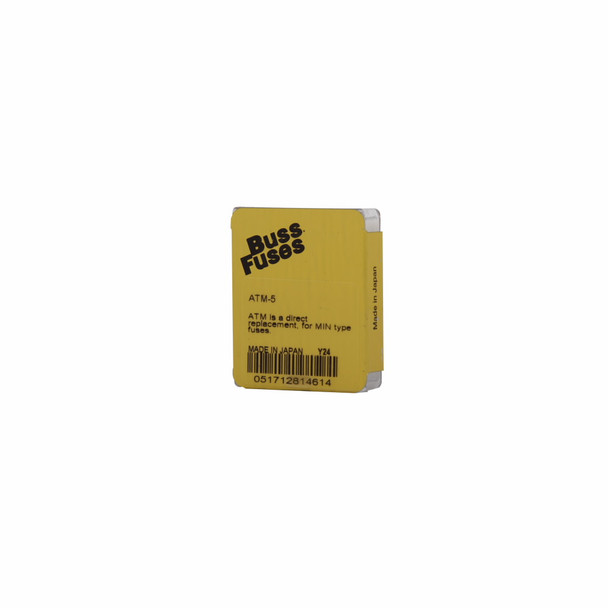

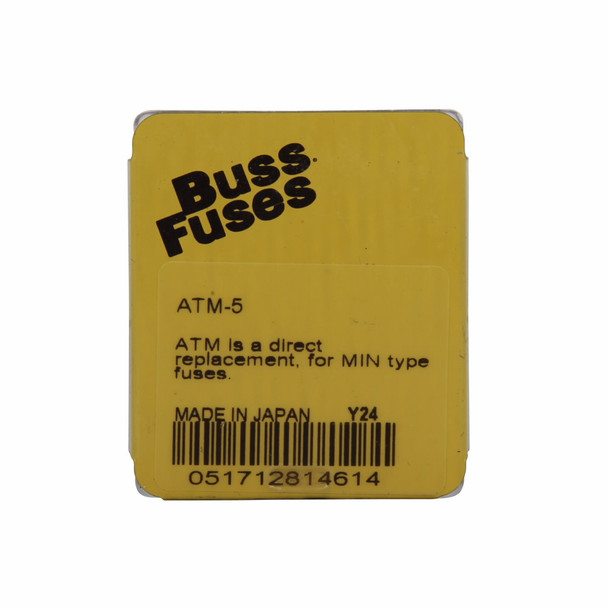

Bussmann ATM-5 Miniature Fuse
Bussmann Miniature Fuse, Fast Acting, Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection, 5, Voltage Rating A, VAC/VDC 32, 1 kA at 32 VAC/VDC Interrupt, Class, Frequency Rating, Speed, Blade Terminal, Mounting Type, Element, 3/4 Length, Width in, in 7/16, 5/32 D, Diameter in, Plastic, Color
Additional Description: BUSS-ATM-5 ATM MINI BLADE FUSE - 5 AMP (5 in TIN)
Catalog Description: Eaton Bussmann series ATM blade fuse, Color code tan, 32 Vdc, 5A, 1 kAIC, Non Indicating, Blade fuse, Blade end, Colored plastic housing, zinc fuse element
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 5 |
| Amperage Rating | 5 A |
| Color | Tan |
| Depth | 0.15 |
| Depth | 5/32 |
| Depth | 5/32 in |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 1 |
| Interrupt Rating | 1 kA at 32 VAC/VDC |
| Length | 0.642 |
| Length | 3/4 |
| Length | 3/4 in |
| Material | Plastic |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | ATM |
| Terminal Type | Blade |
| Type | Fast Acting |
| Type | Fast Acting Fast Blow Miniature |
| Voltage Rating | 32 |
| Voltage Rating | 32 VAC/VDC |
| Width | 0.43 |
| Width | 7/16 |
| Width | 7/16 in |
