Description

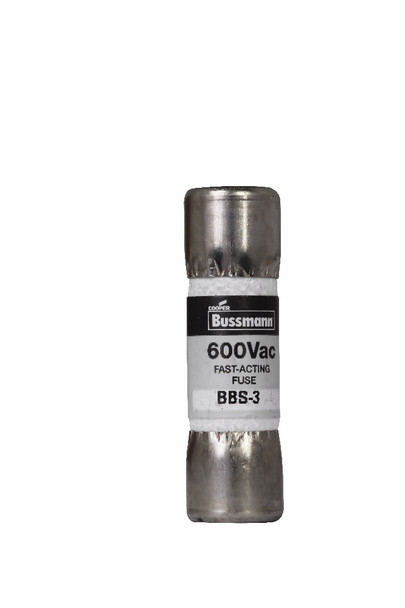

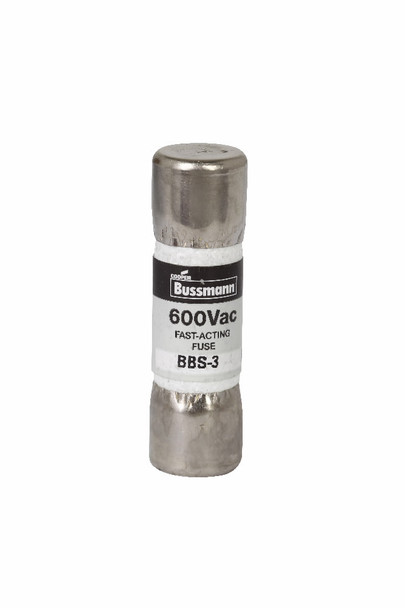

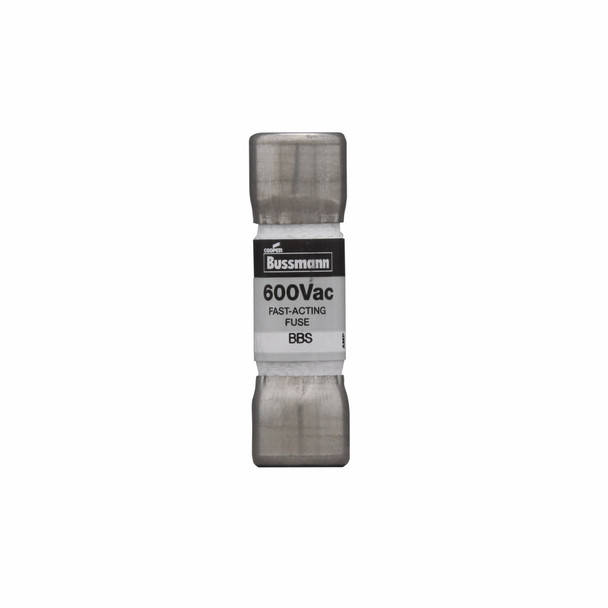

Bussmann BBS-3 Midget Fuse
Bussmann Fuse, Fast Acting, Series: BBS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 3 A, 600 VAC, 10 kAIC Interrupt, Class: Supplemental, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Single Element, Nickel Plated Brass, Black, 13/32 in Dia x 1-3/8 in L Body Size
Additional Description: BUSS-BBS-3 BUSS MIDGET FUSE FAST ACTING
Catalog Description: Eaton Bussmann series BBS fuse, 3 A, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 600 Vac, Nickel-plated brass endcaps, Standard, 600 V
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 3 |
| Amperage Rating | 3 A |
| Body Type | Cartridge |
| Class | CC/Supplemental |
| Class | Supplemental |
| Color | Black |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 10 |
| Interrupt Rating | 10 kAIC |
| Material | Fiber Tube |
| Material | Nickel Plated Brass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | BBS |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Fast Acting |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
