Description

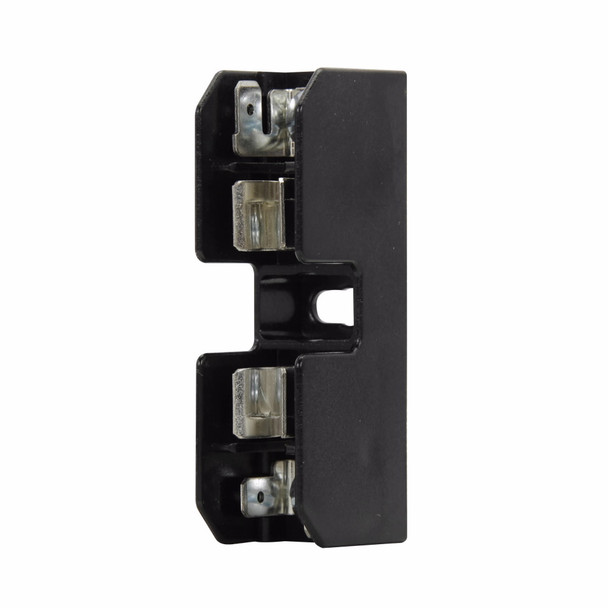

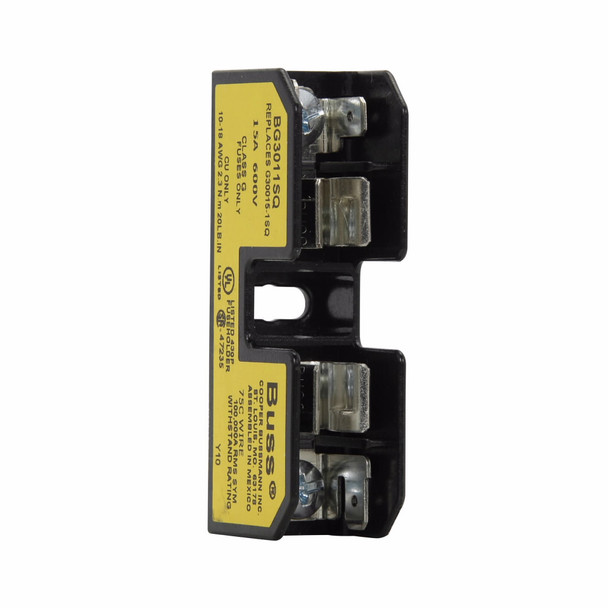

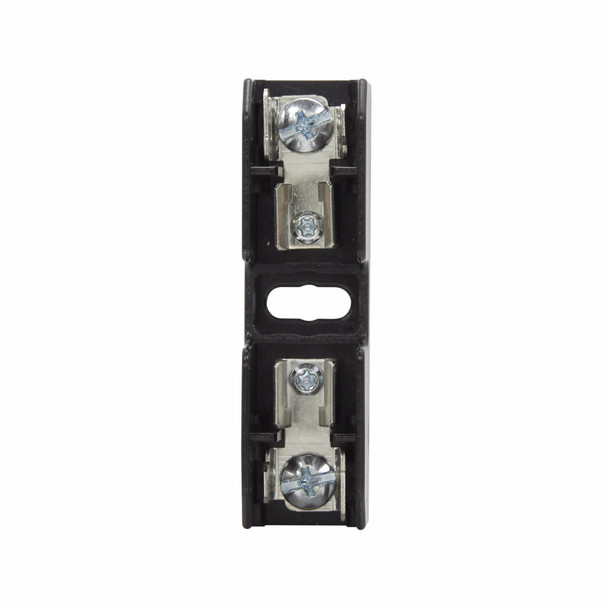

Bussmann BG3011SQ Fuse Block
Bussmann Fuse Block, Open, Series: BG Series, 600 V, 0.18 to 15 A, 1 Pole, Class: G, Quick-Connect/Screw, 14 to 10 AWG Wire, DIN Rail Mount, 1.419 in Fuse Length, 13/32 in Fuse Dia, 130 deg C, For Use With: SC Series Class G Fuse, Thermoplastic, Black, 3 in L x 0.86 in W x 1.22 in H
Additional Description: BUSS-BG3011SQ FUSEBLOCK WAS 2961
Catalog Description: Eaton Bussmann series BG open fuse block, 0.18-15 A, Single-pole, Class G, Screw/quick connect, 100 kAIC, Thermoplastic, 600 V, For use with SC fuse, #14-10 AWG Cu/Al
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 0.18 to 15 |
| Amperage Rating | 0.18 to 15 A |
| Amperage Rating | 1 to 20 |
| Class | G |
| Color | Black |
| Connection type | Quick-Connect/Screw |
| Connection type | Screw/Quick-Connect |
| Dimensions | 3 in L x 0.86 in W x 1.22 in H |
| Fuse Diameter | 13/32 |
| Fuse Diameter | 13/32 in |
| Fuse Length | 1.419 |
| Fuse Length | 1.419 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail |
| Number of Poles | 1 |
| Series | BG Series |
| Suitable For Use With | Bussmann SC Series Class G Fuse |
| Suitable For Use With | SC Series Class G Fuse |
| Temperature Rating (Degrees F) | 130 |
| Temperature Rating (Degrees F) | 130 deg C |
| Type | Open |
| Type | Open Style |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 14 to 10 |
| Wire Size | 14 to 10 AWG |
