Description

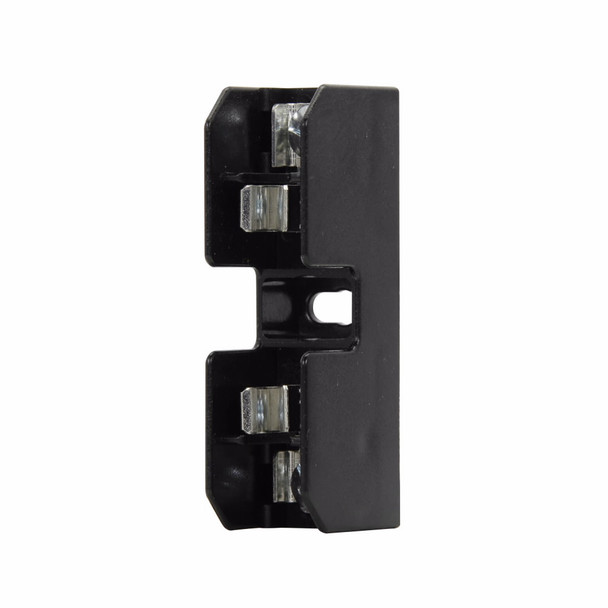

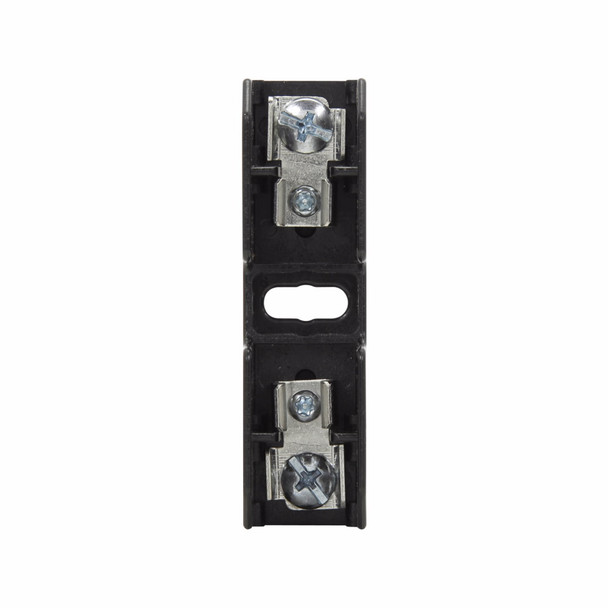

Bussmann BG3031S Fuse Block
Bussmann Fuse Block, Open, Series: BG Series, 480 V, 25 to 30 A, 1 Pole, Class: G, Screw, 14 to 10 AWG Wire, DIN Rail Mount, 1.639 in Fuse Length, 13/32 in Fuse Dia, 130 deg C, For Use With: SC Series Class G Fuse, Thermoplastic, Black, 3 in L x 0.86 in W x 1.22 in H
Additional Description: BUSS-BG3031S FUSEBLOCK WAS 2963
Catalog Description: Eaton Bussmann series BG open fuse block, 25-30 A, Single-pole, Class G, Screw, 100 kAIC, Thermoplastic, 480 V, For use with SC fuse, #14-10 AWG Cu
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 25 to 30 |
| Amperage Rating | 25 to 30 A |
| Class | G |
| Color | Black |
| Connection type | Screw |
| Dimensions | 3 in L x 0.86 in W x 1.22 in H |
| Fuse Diameter | 13/32 |
| Fuse Diameter | 13/32 in |
| Fuse Length | 1.639 |
| Fuse Length | 1.639 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail |
| Number of Poles | 1 |
| Series | BG Series |
| Suitable For Use With | Bussmann SC Series Class G Fuse |
| Suitable For Use With | SC Series Class G Fuse |
| Temperature Rating (Degrees F) | 130 |
| Temperature Rating (Degrees F) | 130 deg C |
| Type | Open |
| Type | Open Style |
| Voltage Rating | 480 |
| Voltage Rating | 480 V |
| Wire Size | 14 to 10 |
| Wire Size | 14 to 10 AWG |
