Description

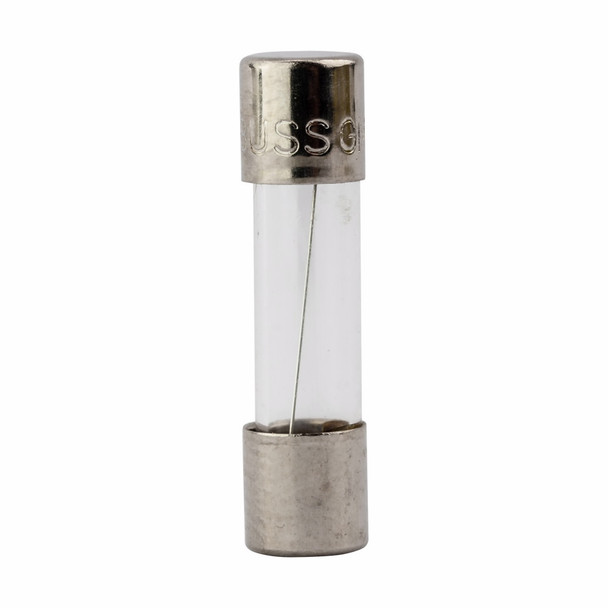

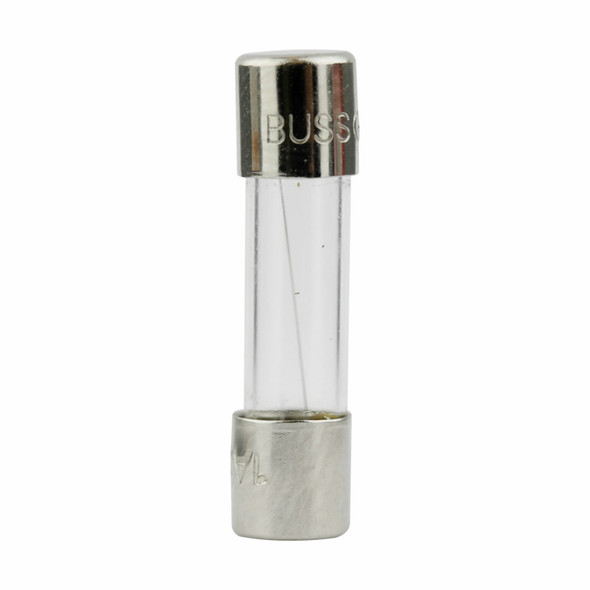

Bussmann BK/GMA-500-R Fast Acting Fuse
Bussmann Fast Acting Fuse, Low Breaking Small Dimension, Series: GMA, Non-Indicating, Non-Rejection, 500 mA, 250 VAC, 35 A, 10 kA Interrupt, 60 min, 2 min Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 5 mm Dia x 20 mm L Body
Additional Description: BUSS-BK/GMA-500-R (N) GMA 500mA BUSS FA BK 100 BOX -R NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton GMA Series Fast-acting fuse 0.5A, 250 Vac, 32 Vdc (self certified), BK-GMA-500-R
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 500 |
| Amperage Rating | 500 mA |
| Body Type | Cylindrical |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 35 A, 10 kA |
| Material | Glass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 60 min, 2 min |
| Series | GMA |
| Terminal Type | Ferrule |
| Type | Low Breaking Small Dimension |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
