Description

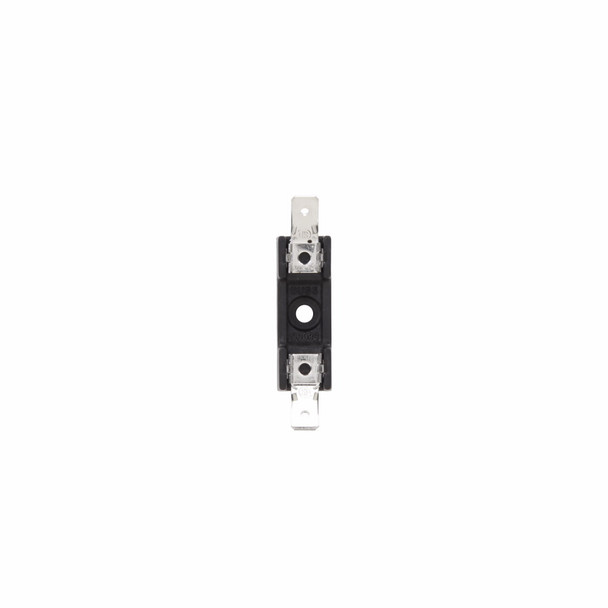

Bussmann BK/S-8102-1-R Fuse Block
Bussmann Fuse Block, Series: 8100, 300 VAC/VDC, 13/20 A, 1 Pole, 40 deg 3/16 in Quick Connect Connection, Bolted-In Mounting, 1-1/4 in Fuse Length, 1/4 in Diameter Fuse, 130 deg C, Thermoplastic, Black, 2 in L x 0.5 in W x 0.56 in H Dimensions
Additional Description: BUSS-BK/S-8102-1-R BUSS FUSEBLOCK
Catalog Description: Fuse Blocks, For .25 X 1.25 fuses, 3/16 quick connect terminal, Bolt-in, One-pole, Bulk 200, 8100, Anti-rotation pin (optional on single-pole blocks), 300V, Molded flame retarded thermoplastic, Clips- spring bronze
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 13/20 A |
| Color | Black |
| Connection type | 40 deg 3/16 in Quick Connect |
| Dimensions | 2 in L x 0.5 in W x 0.56 in H |
| Fuse Diameter | 1/4 in |
| Fuse Length | 1-1/4 in |
| Material | Thermoplastic |
| Mounting type | Bolted-In |
| Number of Poles | 1 |
| Series | 8100 |
| Temperature Rating (Degrees F) | 130 deg C |
| Voltage Rating | 300 VAC/VDC |
