Description

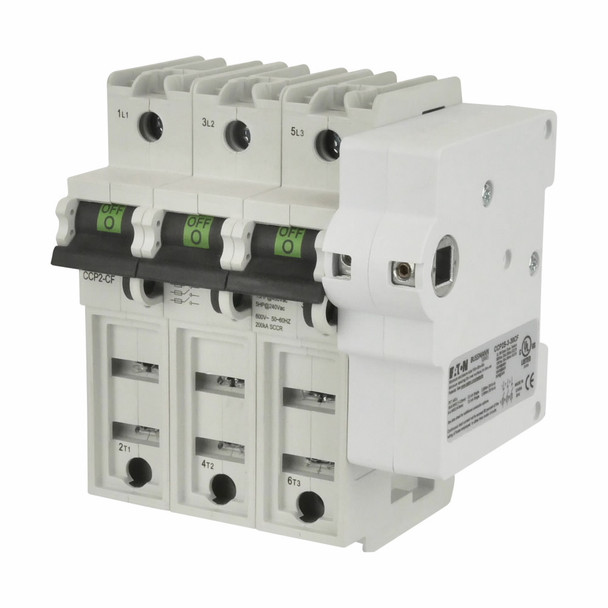

Bussmann CCP2S-3-30CF
Additional Description: BUSS-CCP2S-3-30CF CCP2 3P 30A CF W/ SIDE H&M RIGHT
Catalog Description: Eaton Bussmann series CCP UL98 fusible disconnect, Finger Safe, Lock-On provision, 600 Vac, 125 Vdc, 225A, UL98 fusible disconnect, Three-pole, 200 kA - CCP2S-3-30CF
Specifications
| UNSPSC | 39122233 |
|---|---|
| Amperage Rating | 30 A |
| Height | 3.7 in |
| Mounting type | 35 mm DIN Rail |
| Number of Poles | 3 |
| Operating Temperature | -4 to 167 deg F |
| Operator | Right Side Rotary/Clockwise Operated Switch |
| Type | Compact Fused |
| Voltage Rating | 600 VAC/125 VDC |
| Width | 0.3 in |
