Description

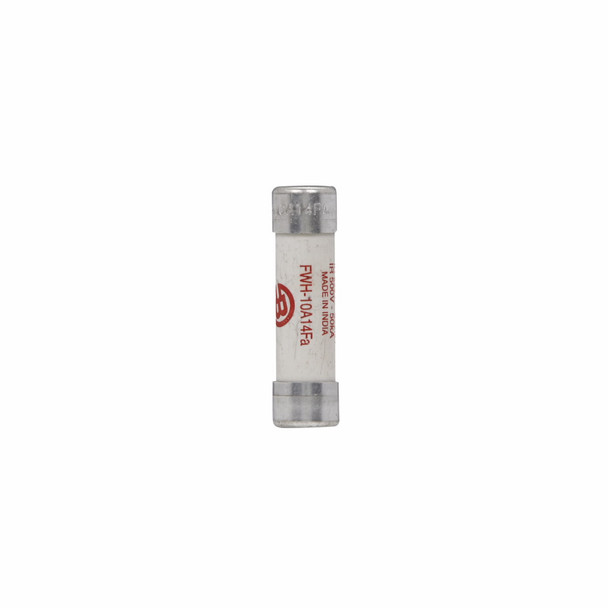

Bussmann FWH-10A14F High Speed Fuse
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWH, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 10 A, 500 VAC, 200 kA Interrupt, 45 to 1000 Hz, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 0.563 in Dia x 2 in L Body Size
Additional Description: BUSS-FWH-10A14F SEMI-COND FUSE 10A 500V 14 X 51MM
Catalog Description: Eaton Bussmann series FWH high speed fuse, 1000 Vac, 800 Vdc, 10A, 200 kAIC Vac, 50 kAIC at 500 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 10 A |
| Body Type | Cylindrical |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | FWH |
| Terminal Type | Ferrule End |
| Type | Fast Acting Semi-Conductor |
| Voltage Rating | 500 VAC |
