Description

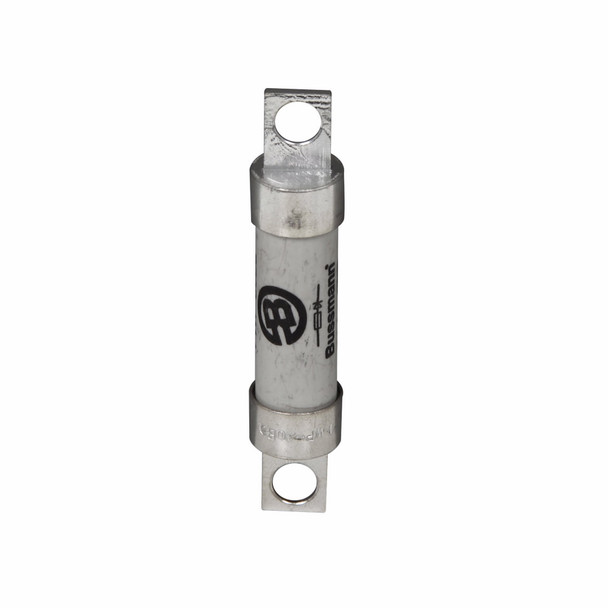

Bussmann FWP-20B High Speed Fuse
Bussmann High Speed Fuse, Fast Acting Semi-Conductor, Series: FWP, Indicating/Non-Indicating: Non-Indicating, 20 A, 700 VAC, 200 kA Interrupt, 45 to 1000 Hz, Blade End Terminal, Stud Mount, Cylindrical Body, Ceramic, 0.563 in Dia x 2.87 in L Body Size
Additional Description: BUSS-FWP-20B 20AMP 700V AC SEMI-COND
Catalog Description: Eaton Bussmann series FWP high speed fuse, 700 Vac (UL), 690 Vac (IEC), 500 Vdc (2-100A), 500 Vac, 20A, 200 kAIC Vac, 50 kAIC at 700 Vdc, None, High speed fuse, Blade end X blade end, Stud
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 20 |
| Amperage Rating | 20 A |
| Body Type | Cylindrical |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 kA |
| Interrupt Rating | 50/200 |
| Material | Ceramic |
| Mounting type | Stud |
| Series | FWP |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | Fast Acting |
| Type | Fast Acting Semi-Conductor |
| Voltage Rating | 700 |
| Voltage Rating | 700 VAC |
