Description

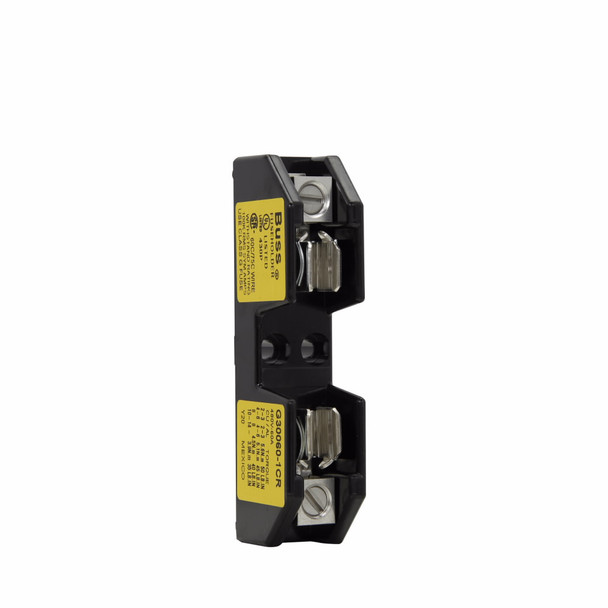

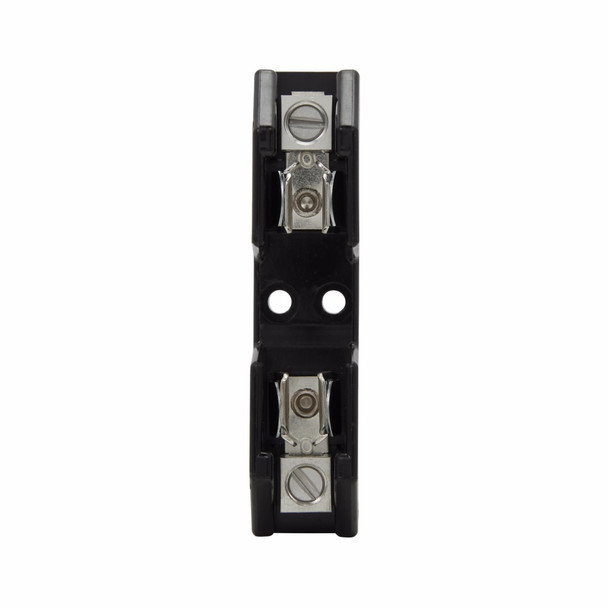

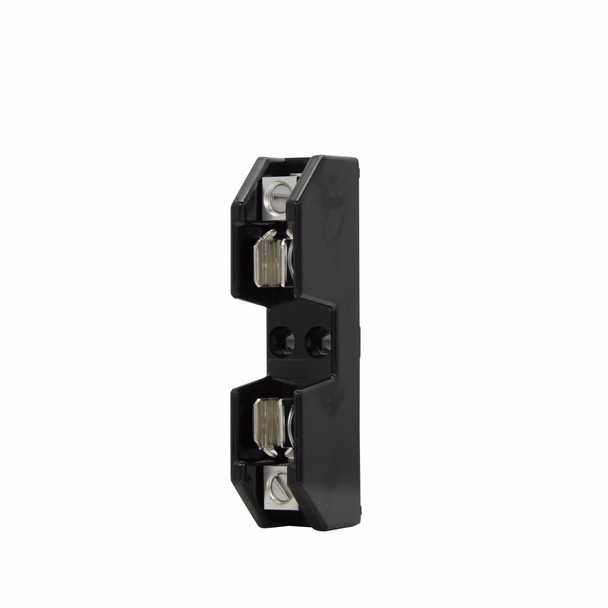

Bussmann G30060-1CR Fuse Block
Bussmann Fuse Block, Open, Series: G Series, 480 V, 35 to 60 A, 1 Pole, Class: G, Box Lug/Retaining Clip, 14 to 2 AWG Wire, DIN Rail Mount, For Use With: SC Series Cartridge Fuse, Phenolic, 4.25 in L x 0.94 in W x 1.38 in H
Additional Description: BUSS-G30060-1CR FUSE BLOCK
Catalog Description: Eaton Bussmann series G open fuse block, 480V, 35-60A, Box Lug/Retaining Clip, Single-pole
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 35 to 60 |
| Amperage Rating | 35 to 60 A |
| Class | G |
| Color | Black |
| Connection type | Box Lug with Retaining Clip |
| Connection type | Box Lug/Retaining Clip |
| Dimensions | 4.25 in L x 0.94 in W x 1.38 in H |
| Fuse Diameter | 0.41 |
| Fuse Length | 2.259 |
| Material | Phenolic |
| Mounting type | DIN Rail |
| Number of Poles | 1 |
| Series | G Series |
| Series | G300 |
| Suitable For Use With | Class G/SC Fuse |
| Suitable For Use With | SC Series Cartridge Fuse |
| Type | Open |
| Type | Open Style |
| Voltage Rating | 480 |
| Voltage Rating | 480 V |
| Wire Size | 14 to 2 |
| Wire Size | 14 to 2 AWG |
| Wire Size | 14 to 2 AWG, 8 to 2 AWG |
