Description

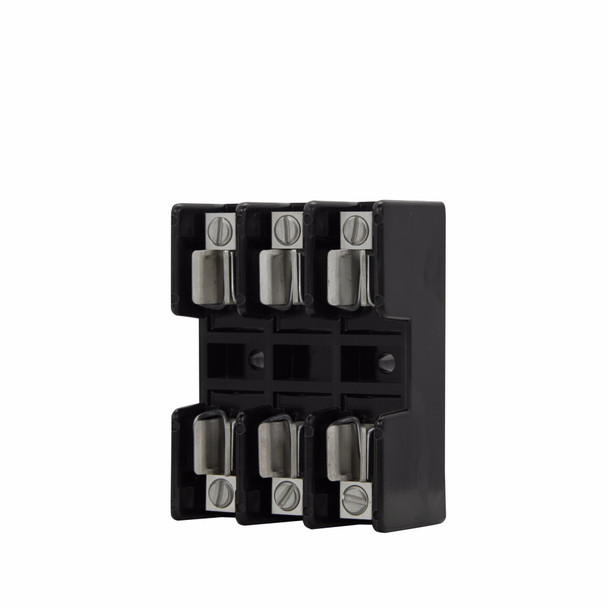

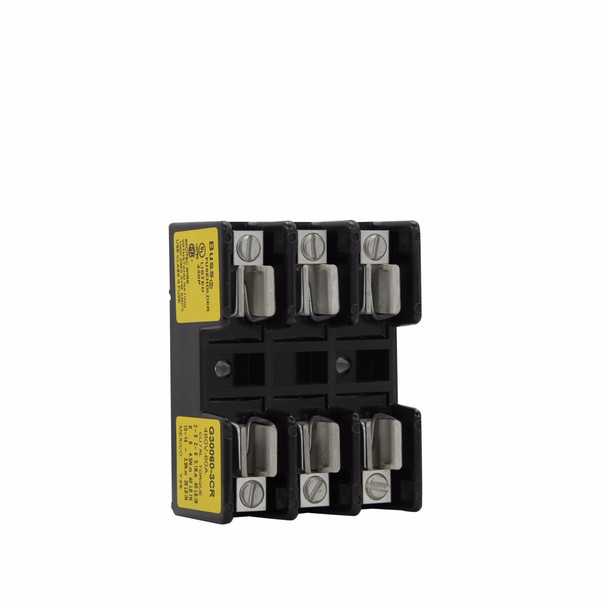

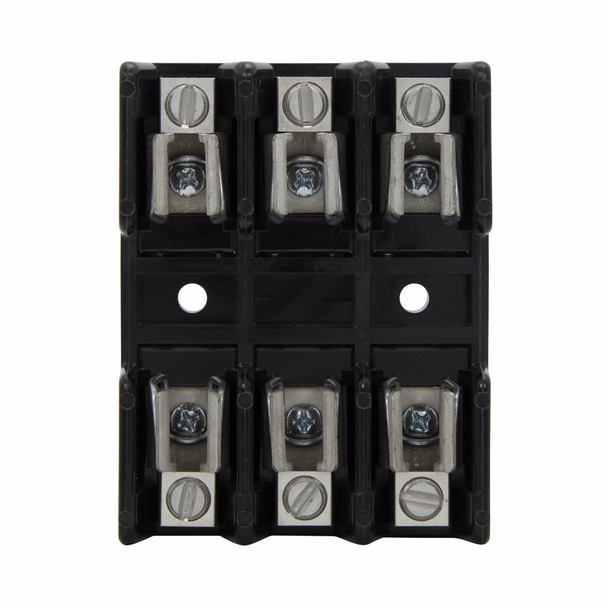

Bussmann G30060-3CR Fuse Block
Bussmann Fuse Block, Open Style, Series: G300, 480 V, 35 to 60 A, 3 Pole, Class: G, Box Lug with Retaining Clip, 14 to 2 AWG, 8 to 2 AWG Wire, DIN Rail Mount, 2.259 in Fuse Length, 0.41 in Fuse Dia, For Use With: G/SC Fuse, Phenolic, Black, 3.56 in L x 2.75 in W x 1.41 in H
Additional Description: BUSS-G30060-3CR BUSS FUSE BLOCK
Catalog Description: Eaton Bussmann series G open fuse block, 480V, 35-60A, Box Lug/Retaining Clip, Three-pole, CR
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 35 to 60 |
| Amperage Rating | 35 to 60 A |
| Class | G |
| Color | Black |
| Connection type | Box Lug with Retaining Clip |
| Dimensions | 3.56 in L x 2.75 in W x 1.41 in H |
| Fuse Diameter | 0.41 |
| Fuse Diameter | 0.41 in |
| Fuse Length | 2.259 |
| Fuse Length | 2.259 in |
| Material | Phenolic |
| Mounting type | DIN Rail |
| Number of Poles | 3 |
| Series | G300 |
| Suitable For Use With | Class G/SC Fuse |
| Suitable For Use With | G/SC Fuse |
| Type | Open Style |
| Voltage Rating | 480 |
| Voltage Rating | 480 V |
| Wire Size | 14 to 2 AWG, 8 to 2 AWG |
