Description

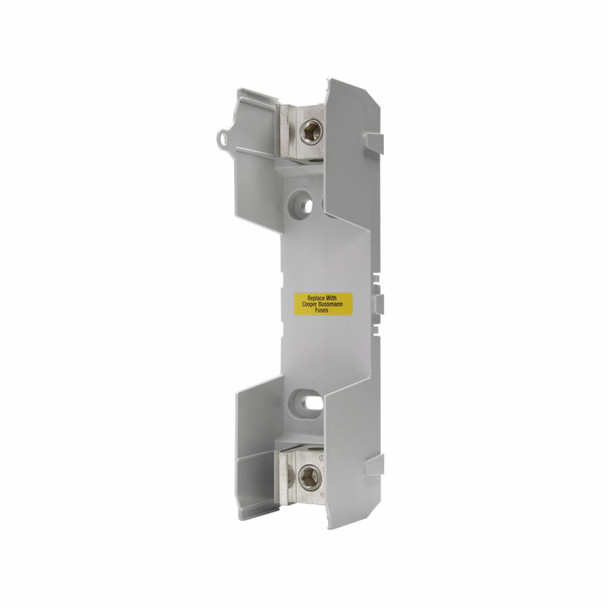

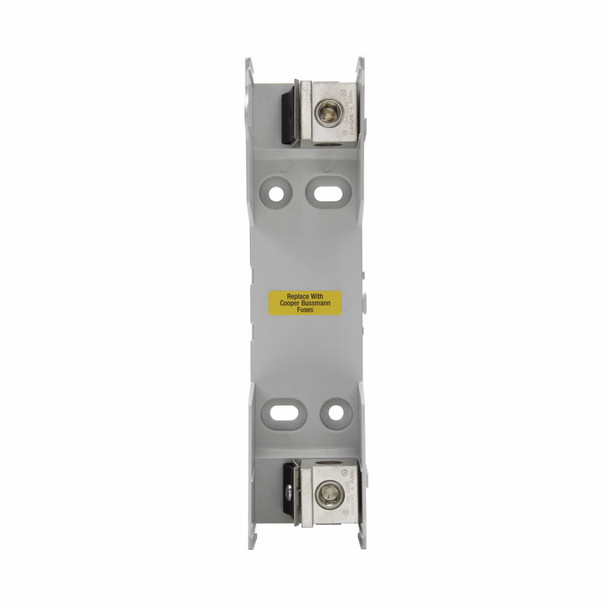

Bussmann HM60200-1CR Fuse Block
Bussmann Fuse Block, Modular, Series: HM Series, 600 V, 110 to 200 A, 1 Pole, Class: H/K, 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 7.3 in L x 2.6 in W x 3.8 in H
Additional Description: BUSS-HM60200-1CR 200 amp class H fuse holder 600V - 1 pol
Catalog Description: Eaton Bussmann series HM modular fuse block, 600V, 110-200A, Single-pole
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 110 to 200 |
| Amperage Rating | 110 to 200 A |
| Amperage Rating | 200 |
| Class | H |
| Class | H/K |
| Connection type | Box Lug |
| Dimensions | 11.2 in L x 2.6 in W x 3.8 in H |
| Dimensions | 7.3 in L x 2.6 in W x 3.8 in H |
| Fuse Diameter | 1.84/1.66 |
| Fuse Length | 9.63 |
| Material | Thermoplastic |
| Mounting type | Hole |
| Mounting type | Panel |
| Number of Poles | 1 |
| Series | HM Series |
| Series | HM600 |
| Suitable For Use With | Knife Blade Cartridge Fuse |
| Suitable For Use With | NOS Series Knife Blade Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded |
| Wire Size | 1 to 3/0 AWG, 6 to 2 AWG, 1 AWG to 200 kcmil |
| Wire Size | 6 AWG to 250 kcmil |
