Description

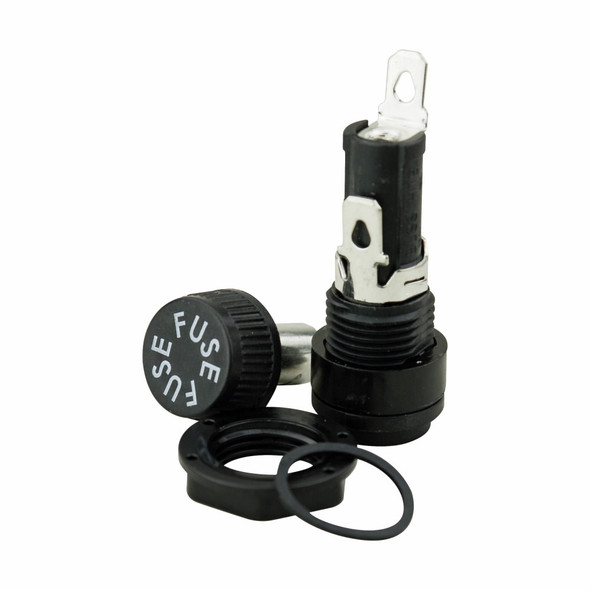

Bussmann HTB-42I Fuse Holder
Bussmann Fuse Holder, High Profile, Series: HTB, 250 VAC, 16/20 A, 1 Pole, Solder 3/16 in Quick Connect In-Line Rear, Panel Mount, 1-1/4 in Fuse Length, 1/4 in Fuse Dia, -55 to 85 deg C, Thermoplastic, Black, 0.81 in L
Additional Description: BUSS-HTB-42I BUSS FUSEHOLDER ASSEMBLY
Catalog Description: 15A 250V 1/4" x 1-1/4" Panel Mount Fuseholder, 3/16" Quick Connects, In-Line Rear Terminal
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 16/20 |
| Amperage Rating | 16/20 A |
| Color | Black |
| Connection type | Solder 3/16 in Quick Connect In-Line Rear |
| Dimensions | 0.81 in L |
| Fuse Diameter | 1/4 |
| Fuse Diameter | 1/4 in |
| Fuse Length | 1-1/4 |
| Fuse Length | 1-1/4 in |
| Material | Thermoplastic |
| Mounting type | Panel |
| Number of Poles | 1 |
| Series | HTB |
| Temperature Rating (Degrees F) | -55 to 85 |
| Temperature Rating (Degrees F) | -55 to 85 deg C |
| Type | High Profile |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
