Description

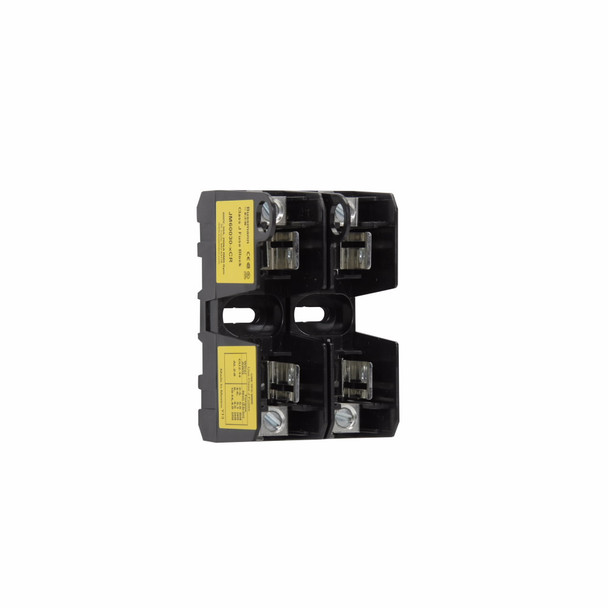

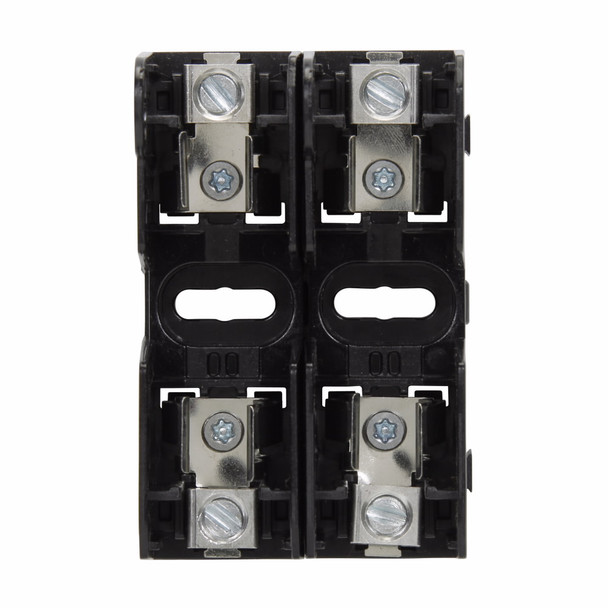

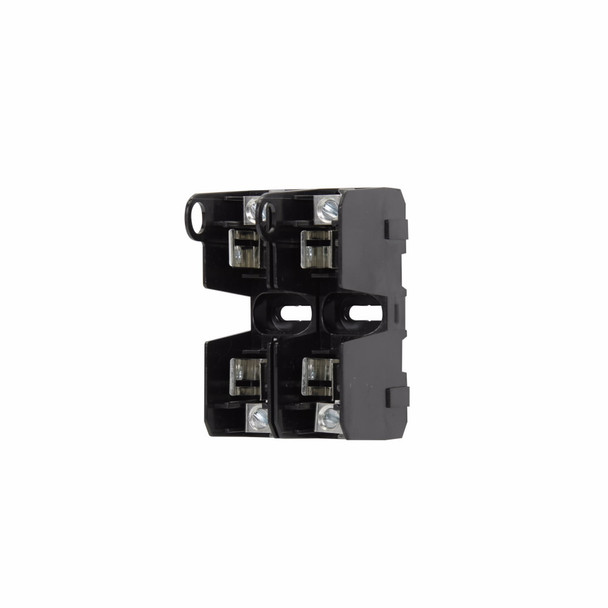

Bussmann JM60030-1CR Fuse Block
Bussmann Fuse Block, Series: JM600, 600 VAC, 1/2 to 30 A, 1 Pole, Class: J, Box Lug/Slot Screw, 14 to 2 AWG, 8 to 2 AWG Wire, DIN Rail/Panel Mount, 2-1/4 in Fuse Length, 0.81 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak LPJ, Limitron JKS and DFJ Ferrule Fuse, Thermoplastic, 4.3 in L x 1.1 in W x 2.3 in H
Additional Description: BUSS-JM60030-1CR Class J fuse block 600V 30A Lug 1 pole
Catalog Description: Eaton Bussmann series JM modular fuse block, CR, 0-30 A, Single-pole, Class J, Box lug, 200 kAIC, 600 V
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 1/2 to 30 |
| Amperage Rating | 1/2 to 30 A |
| Class | J |
| Connection type | Box Lug/Slot Screw |
| Dimensions | 4.3 in L x 1.1 in W x 2.3 in H |
| Fuse Diameter | 0.81 |
| Fuse Diameter | 0.81 in |
| Fuse Length | 2-1/4 |
| Fuse Length | 2-1/4 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Panel |
| Number of Poles | 1 |
| Series | JM600 |
| Suitable For Use With | Low-Peak LPJ, Limitron JKS and DFJ Ferrule Fuse |
| Suitable For Use With | Low-Peak™ LPJ, Limitron™ JKS and DFJ Ferrule Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
| Wire Size | 14 to 2 AWG, 8 to 2 AWG |
