Description

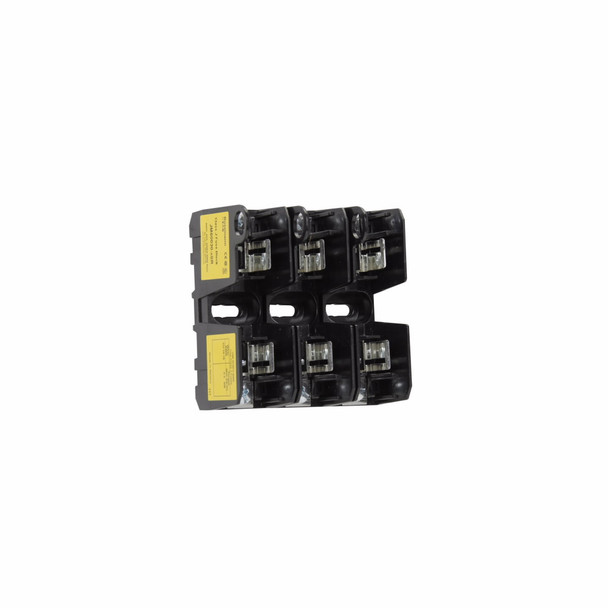

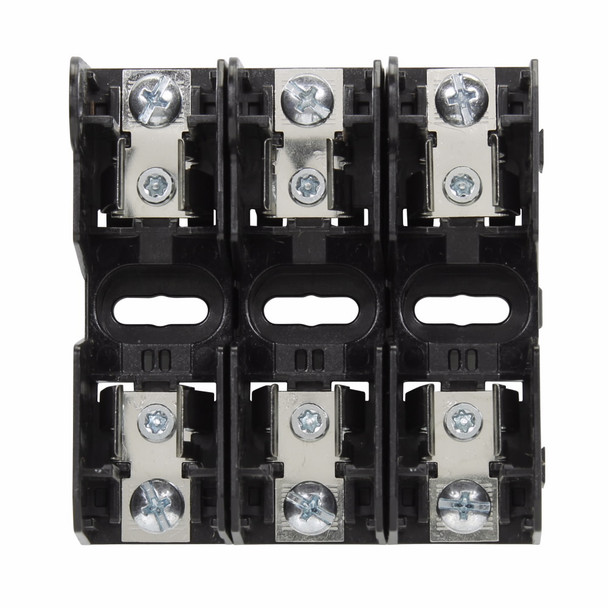

Bussmann JM60030-3SR Power Fuse Block
Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 0 to 30 A, 3 Pole, Class: J, Phillips Slot Screw, -40 to 120 deg C, Thermoplastic
Additional Description: BUSS-JM60030-3SR Class J fuse block 600V 30A Screw 3 pole
Catalog Description: Eaton Bussmann series JM modular fuse block, 0-30 A, Three-pole, Class J, Philslot screws/pressure plate, 200 kAIC, 600 V
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 0 to 30 A |
| Amperage Rating | 30 |
| Class | J |
| Connection type | Phillips Slot Screw |
| Connection type | Phillips® Slot Screw |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | JM Series |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
