Description

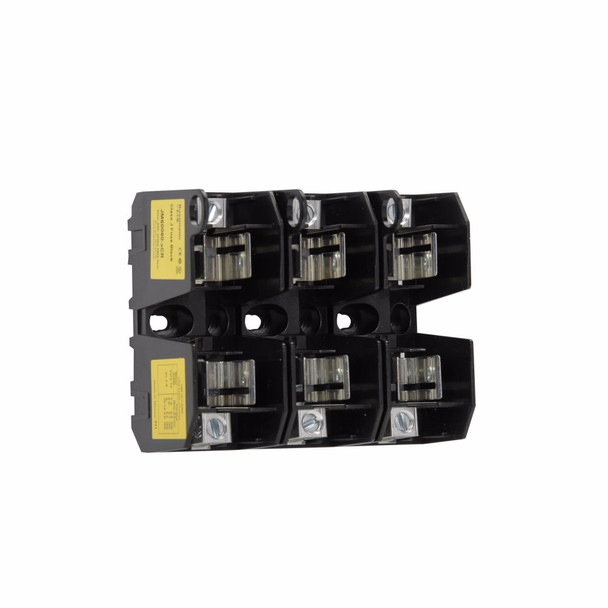

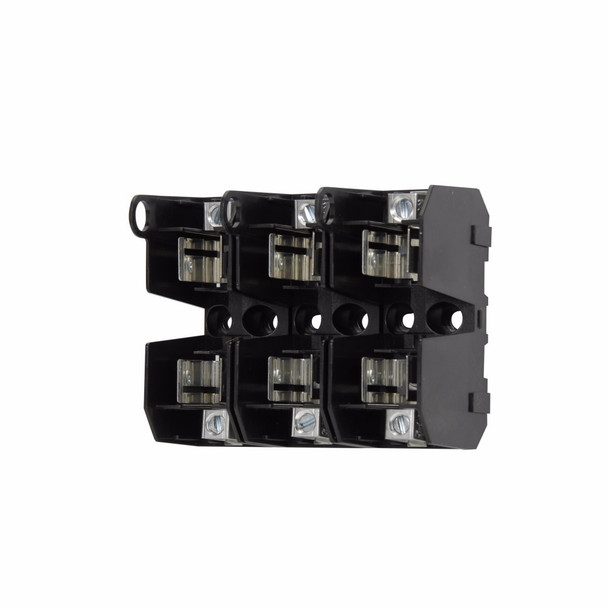

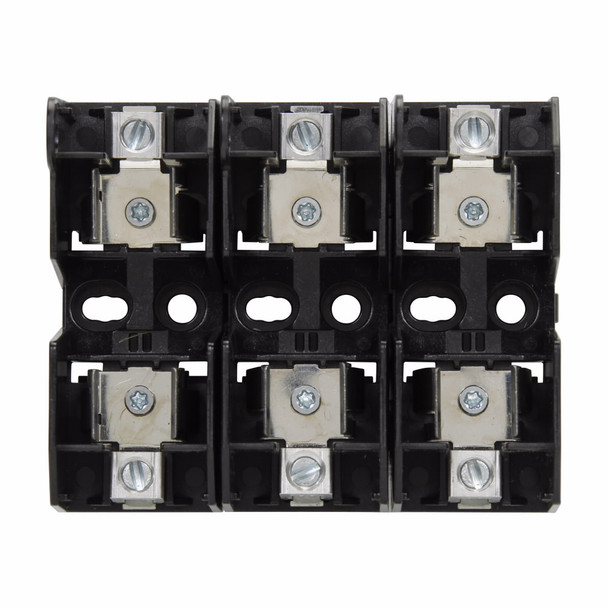

Bussmann JM60060-3CR Fuse Block
Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 35 to 60 A, 3 Pole, Class: J, Box Lug/Slot Screw, 14 to 2 AWG Cu, 8 to 2 AWG Al Wire, DIN Rail/Panel Mount, 2.38 in Fuse Length, 1.06 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak LPJ Series Time Delay, Limitron JKS, DFJ Series Ferrule Fuse, Thermoplastic, 4.7 in L x 4.5 in W x 2.6 in H
Additional Description: BUSS-JM60060-3CR Class J fuse block 600V 60A 3 pole pole
Catalog Description: Eaton Bussmann series JM modular fuse block, CR, 35-60 A, Three-pole, Class J, Box lug, 200 kAIC, 600 V
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 31 to 60 |
| Amperage Rating | 35 to 60 A |
| Class | J |
| Connection type | Box Lug/Slot Screw |
| Dimensions | 4.7 in L x 4.5 in W x 2.6 in H |
| Fuse Diameter | 1.06 |
| Fuse Diameter | 1.06 in |
| Fuse Length | 2.38 |
| Fuse Length | 2.38 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Panel |
| Number of Poles | 3 |
| Series | JM Series |
| Series | JM600 |
| Suitable For Use With | Low-Peak LPJ Series Time Delay, Limitron JKS, DFJ Series Ferrule Fuse |
| Suitable For Use With | Low-Peak™ LPJ Series Time Delay, Limitron™ JKS, DFJ Series Ferrule Fuse |
| Suitable For Use With | Low-Peak™ LPJ, Limitron™ JKS and DFJ Ferrule Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 14 to 2 AWG Cu, 8 to 2 AWG Al |
| Wire Size | 14 to 2 AWG, 8 to 2 AWG |
