Description

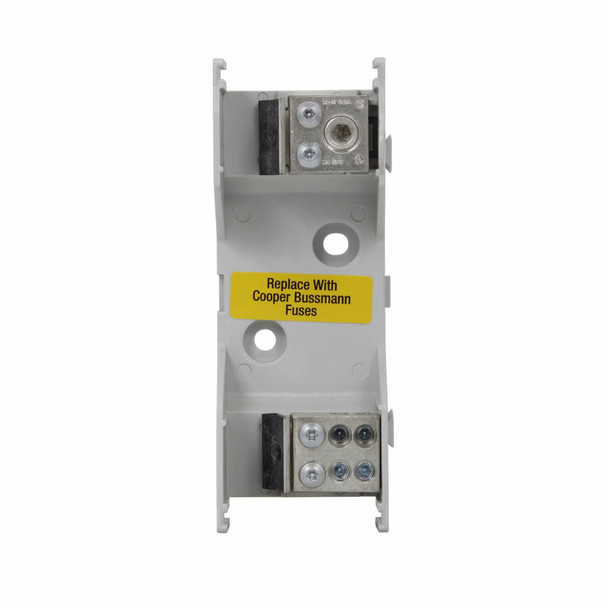

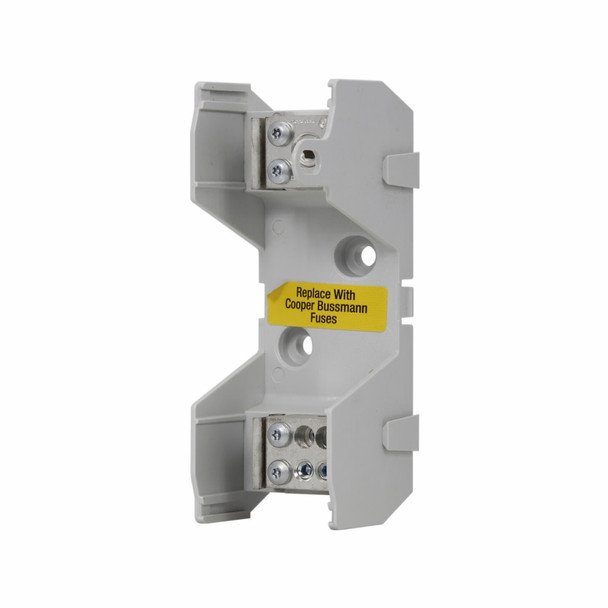

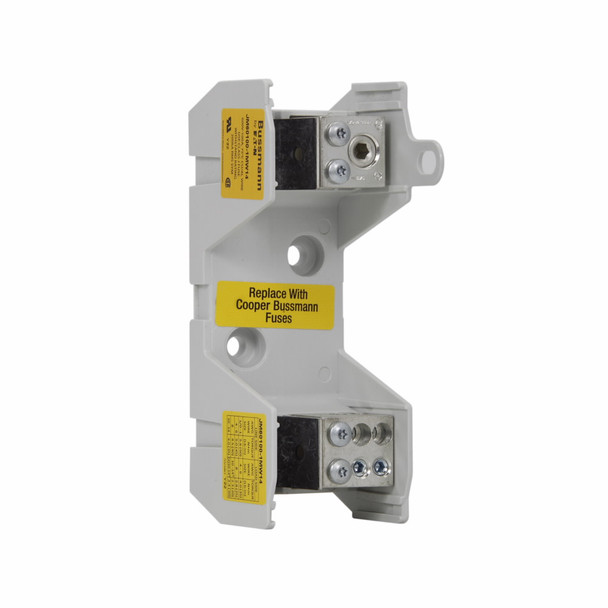

Bussmann JM60100-1MW14 Fuse Block
Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 70 to 100 A, 1 Pole, Class: J, (1) 14 to 1/0 AWG Cu/Al Line, (4) 14 to 4 AWG Cu, 8 to 4 AWG Al, (8)14 to 10 AWG Cu Load Wire, Surface Mount, -40 to 120 deg C, For Use With: Low-Peak Limitron DFJ Series Drive Cartridge Fuse, Thermoplastic, 5.5 in L x 2 in W x 2.2 in H
Additional Description: BUSS-JM60100-1MW14 CLASS J 600V 100A - FUSE BLOCK ASSY - 1
Catalog Description: Eaton Bussmann series JM modular fuse block, 600V, 70-100A, Single-pole
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 70 to 100 |
| Amperage Rating | 70 to 100 A |
| Class | J |
| Color | Gray |
| Connection type | Lug |
| Dimensions | 5.5 in L x 2 in W x 2.2 in H |
| Dimensions | 5.5 in L x 2 in W x 2.8 in H |
| Fuse Diameter | 1.13 |
| Fuse Length | 4.63 |
| Material | Thermoplastic |
| Mounting type | Panel |
| Mounting type | Surface |
| Number of Poles | 1 |
| Series | JM Series |
| Series | JM600 |
| Suitable For Use With | Low-Peak Limitron DFJ Series Drive Cartridge Fuse |
| Suitable For Use With | Low-Peak™ Limitron™ DFJ Series Drive Cartridge Fuse |
| Suitable For Use With | Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse |
| Suitable For Use With | Low-Peak™, Limitron™ and DFJ Drive Cartridge Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | (1) 14 to 1/0 AWG Cu/Al Line, (4) 14 to 4 AWG Cu, 8 to 4 AWG Al, (8)14 to 10 AWG Cu Load |
| Wire Size | 14 to 1/0 |
