Description

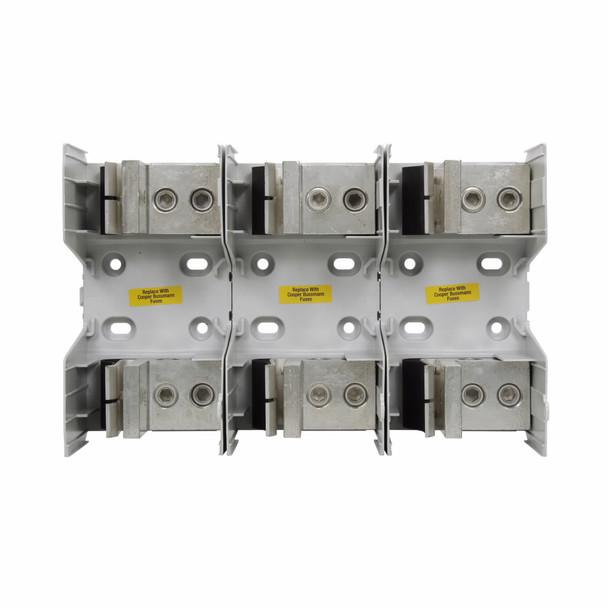

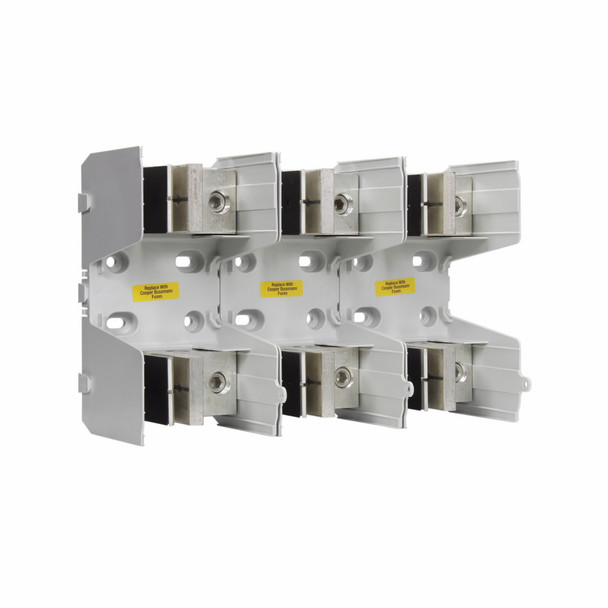

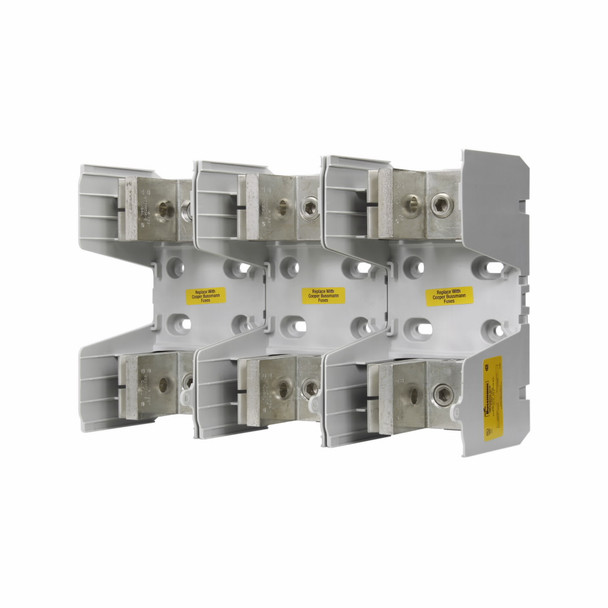

Bussmann JM60600-3CR Fuse Block
Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 450 to 600 A, 3 Pole, Class: J, Knife Blade End, 4 AWG to 500 kcmil Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 9.25 in L x 6 in W x 14 in H
Additional Description: BUSS-JM60600-3CR 600 amp class J fuse holder 600V 3 pole
Catalog Description: Eaton Bussmann series JM modular fuse block, CR, 450-600 A, Three-pole, Class J, Knife blade end x knife blade end, 200 kAIC, 600 V
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 450 to 600 |
| Amperage Rating | 450 to 600 A |
| Class | J |
| Connection type | Box Lug |
| Connection type | Knife Blade End |
| Dimensions | 9.25 in L x 6 in W x 14 in H |
| Dimensions | 9.3 in L x 14.3 in W x 6 in H |
| Fuse Diameter | 2-1/2 |
| Fuse Length | 8 |
| Material | Thermoplastic |
| Mounting type | Hole |
| Mounting type | Panel |
| Number of Poles | 3 |
| Series | JM Series |
| Series | JM600 |
| Suitable For Use With | Knife Blade Cartridge Fuse |
| Suitable For Use With | Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 4 AWG to 500 kcmil |
