Description

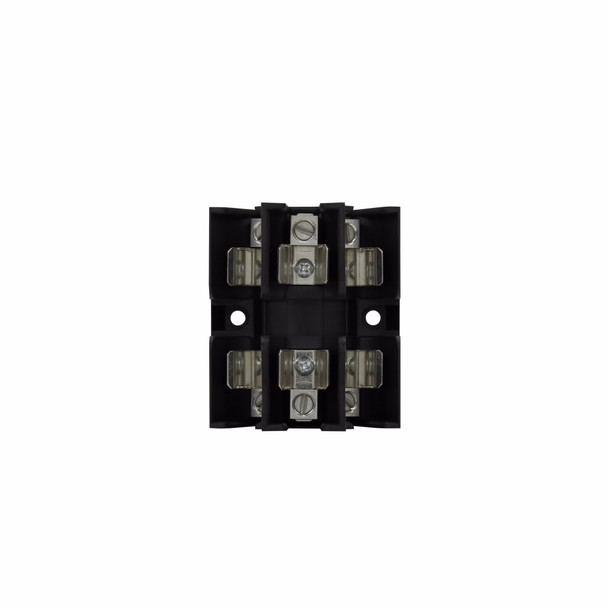

Bussmann JP60030-3CR Fuse Block
Bussmann Fuse Block, Pyramid, Series: JP Series, 600 V, 30 A, 3 Pole, Class: J, Box Lug, 14 to 2 AWG Wire, Panel Mount, -40 to 120 deg C, For Use With: Low-Peak LPJ Series Time Delay, Limitron JKS, DFJ Series Ferrule Fuse, Thermoplastic, 3.29 in L x 3.75 in W x 2.78 in H
Additional Description: BUSS-JP60030-3CR J PYRAMID FUSE BLOCK
Catalog Description: Eaton Bussmann series JP pyramid fuse block, CR, 30 A, Class J, 200 kAIC, Thermoplastic, Panel, 600 V, #14-2 AWG Cu/Al
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 0 to 30 |
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Class | J |
| Color | Black |
| Connection type | Box Lug |
| Connection type | Box Lug/Reinforced Spring |
| Dimensions | 3.29 in L x 3.75 in W x 2.78 in H |
| Dimensions | 3.75 in L x 3.29 in W x 3.06 in H |
| Fuse Diameter | 0.41 |
| Fuse Length | 0.88 |
| Material | Thermoplastic |
| Mounting type | Panel |
| Number of Poles | 3 |
| Series | JP Series |
| Series | JP600 |
| Suitable For Use With | Low-Peak LPJ Series Time Delay, Limitron JKS, DFJ Series Ferrule Fuse |
| Suitable For Use With | Low-Peak™ LPJ and Limitron™ JKS Fuse |
| Suitable For Use With | Low-Peak™ LPJ Series Time Delay, Limitron™ JKS, DFJ Series Ferrule Fuse |
| Suitable For Use With | LPJ, DFJ and JKS Series Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Pyramid |
| Type | Pyramid/Open Style |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 14 to 2 |
| Wire Size | 14 to 2 AWG |
