Description

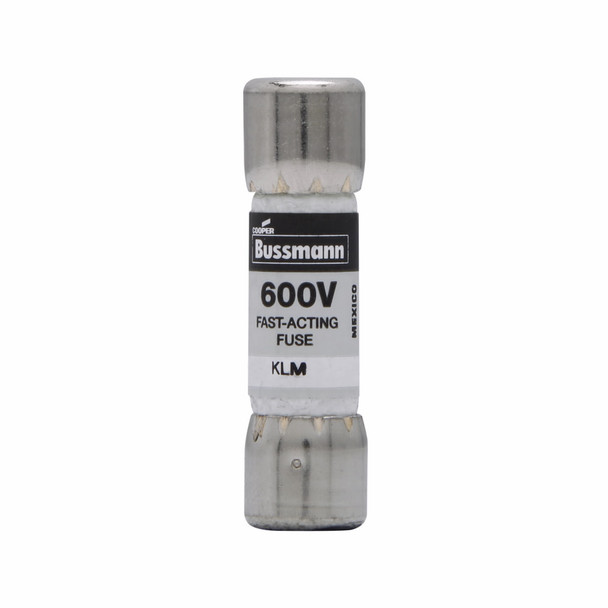

Bussmann KLM-1/4 Fast Acting Fuse
Bussmann Limitron Fuse, Fast Acting Low Voltage Midget Supplemental, Series: KLM, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 0.25 A, 600 VAC/VDC, 100/50 kAIC Interrupt, 4 hr at 100%/1 hr at 135% Response, Clip Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine Glass, Black, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-KLM-1/4 LIMITRON FAST ACTING FUSE
Catalog Description: Eaton Bussmann series KLM fuse, LIMITRON Fast-acting fuse, DC Control circuits, DC photovoltaic systems, 0.25 A, Non-indicating, 100 kAIC at 600 Vac,50 kAIC at 600 Vdc, Melamine tube,Nickel-plated bronze endcap, Standard, 600 V, 600 Vdc
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 0.25 |
| Amperage Rating | 0.25 A |
| Body Type | Cartridge |
| Color | Black |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 kA AC/50 kA DC |
| Interrupt Rating | 100/50 |
| Interrupt Rating | 100/50 kAIC |
| Material | Melamine |
| Material | Melamine Glass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 4 hr at 100%/1 hr at 135% |
| Response Time | 4 hr, 1 hr |
| Series | KLM |
| Terminal Type | Clip |
| Type | Fast Acting Low Voltage Midget Supplemental |
| Type | Low Voltage Midget Supplemental |
| Type | Supplemental |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
