Description

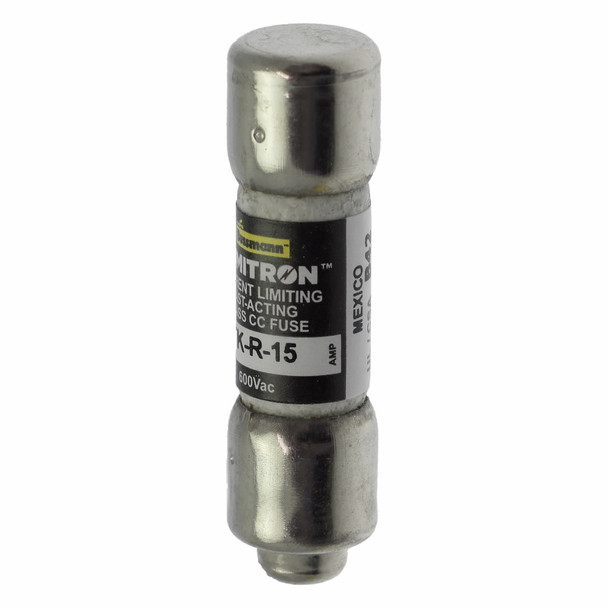

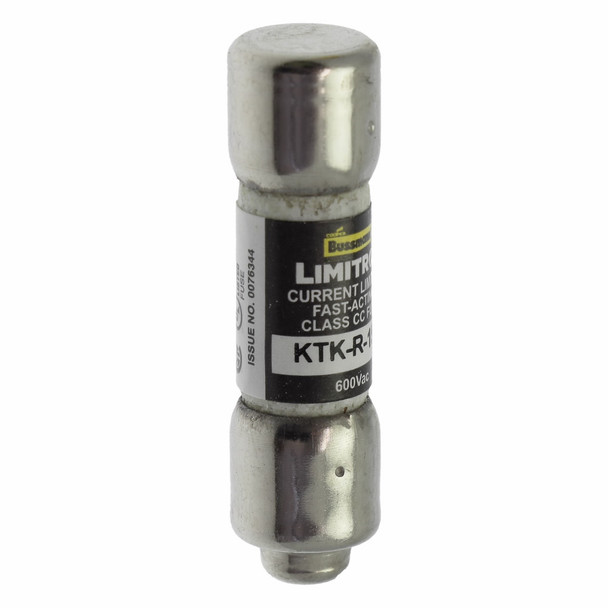

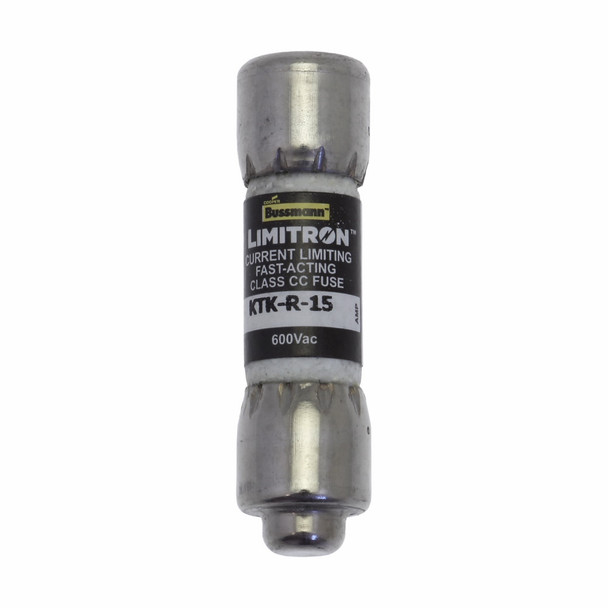

Bussmann KTK-R-15 Fast Acting Fuse
Bussmann Limitron Fuse, Current Limiting Fast Acting, Series: KTK-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 15 A, 600 V, 200 kAIC Interrupt, Class: CC, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-KTK-R-15 CLASS CC FAST ACTING FUSE CLASS CC CC
Catalog Description: Eaton Bussmann series KTK-R fuse, Rejection style, Specialized circuits and industrial control, 15 A, Class CC, Non-indicating, Ferrule end x ferrule end, 200 kAIC, Melamine tube, Standard, 600 V
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 15 |
| Amperage Rating | 15 A |
| Body Type | Cylindrical |
| Class | CC |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kAIC |
| Material | Melamine |
| Material | Melamine Tube |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Series | KTK-R |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Current Limiting Fast Acting |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
