Description

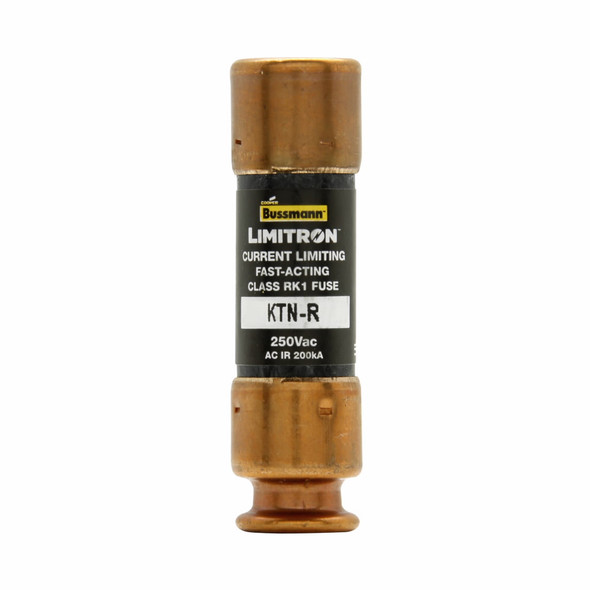

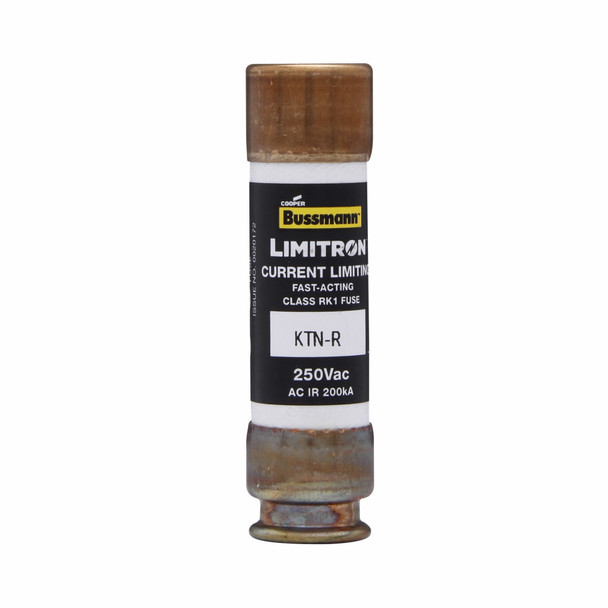

Bussmann KTN-R-40 Fast Acting Fuse
Bussmann Limitron Fuse, Fast Acting Current Limiting Low Voltage, Series: KTN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 40 A, 250 V, 10000 A Interrupt, Class: RK1, Ferrule Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine Glass, 0.81 in Dia x 3 in L Body Size
Additional Description: BUSS-KTN-R-40 LIMITRON FAST ACTING FUSE CLASS RK1
Catalog Description: Eaton Bussmann series KTN-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 40 A, 1, Class RK1, Non-indicating, Ferrule end x ferrule end, Melamine glass tube, Standard, 250 V
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 40 |
| Amperage Rating | 40 A |
| Body Type | Cartridge |
| Class | RK1 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100/200 |
| Interrupt Rating | 10000 A |
| Material | Melamine |
| Material | Melamine Glass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Series | KTN-R |
| Terminal Type | Ferrule |
| Type | Current Limiting Low Voltage |
| Type | Fast Acting Current Limiting Low Voltage |
| Voltage Rating | 250 |
| Voltage Rating | 250 V |
