Description

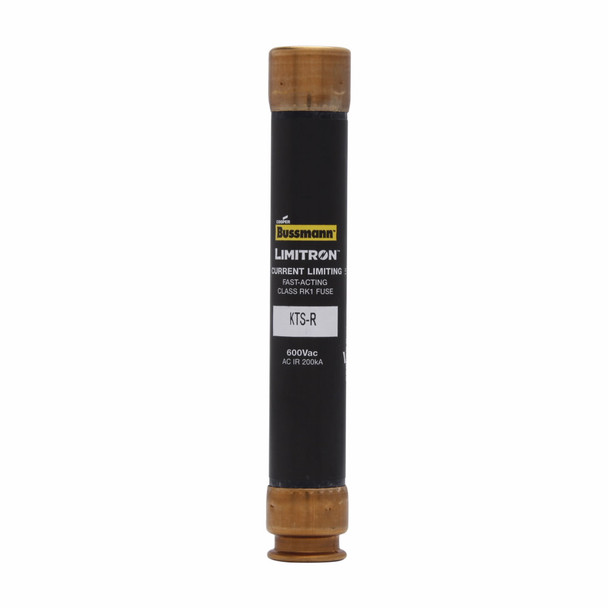

Bussmann KTS-R-15 Fast Acting Fuse
Bussmann Limitron Fuse, Fast Acting Current Limiting Low Voltage, Series: KTS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 15 A, 600 VAC, 200 kA Interrupt, Class: RK1, Ferrule Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine Glass, 0.81 in Dia x 5 in L Body Size
Additional Description: BUSS-KTS-R-15 LIMITRON FAST ACTING FUSE CLASS RK1
Catalog Description: Eaton Bussmann series KTS-R fuse, 70/30 brass end cap, Panelboards, 15 A, 1, Class RK1, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 15 |
| Amperage Rating | 15 A |
| Body Type | Cartridge |
| Class | RK1 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Melamine |
| Material | Melamine Glass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Series | KTS-R |
| Terminal Type | Ferrule |
| Type | Current Limiting Low Voltage |
| Type | Fast Acting Current Limiting Low Voltage |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
