Description

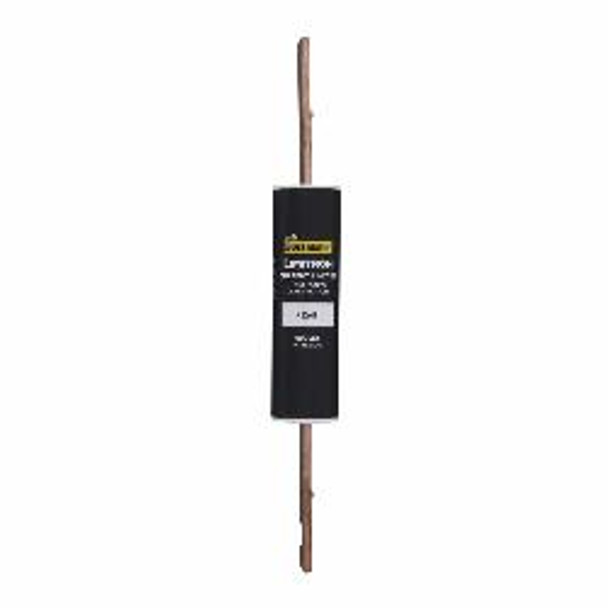

Bussmann KTS-R-200 Limitron Fuse
Bussmann Limitron™ Fuse, Fast Acting Current Limiting Low Voltage, Series: KTS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 200 A, 600 VAC, 200 kA Interrupt, Class: RK1, Blade Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine Glass, 1.5 in Dia x 9.63 in L Body Size
Additional Description: BUSS-KTS-R-200 LIMITRON FAST ACTING FUSE CLASS RK1
Catalog Description: Eaton Bussmann series KTS-R fuse, 70/30 brass end cap, Panelboards, 200 A, 1, Class RK1, Non-indicating, Blade end x blade end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 200 A |
| Body Type | Cartridge |
| Class | RK1 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 kA |
| Material | Melamine Glass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Series | KTS-R |
| Terminal Type | Blade |
| Type | Fast Acting Current Limiting Low Voltage |
| Voltage Rating | 600 VAC |
