Description

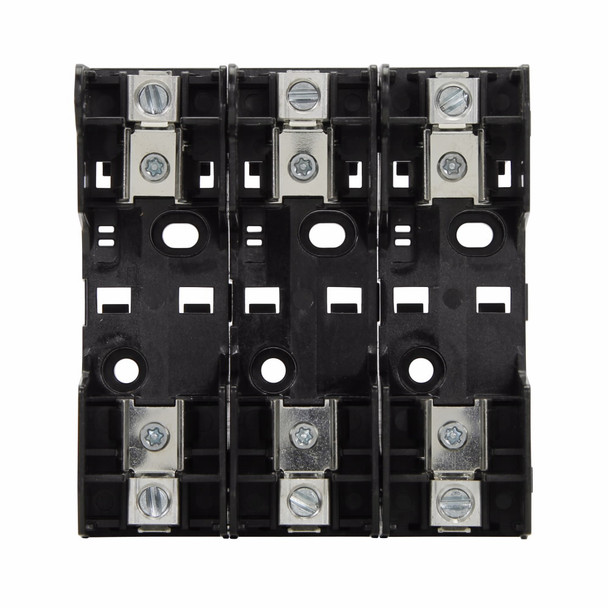

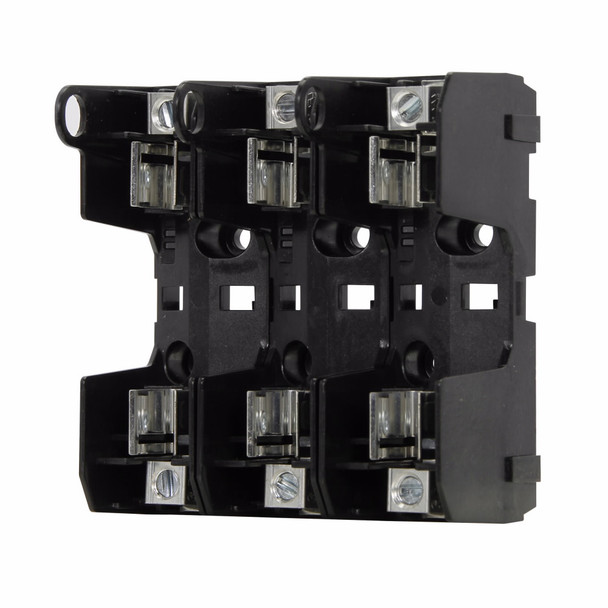

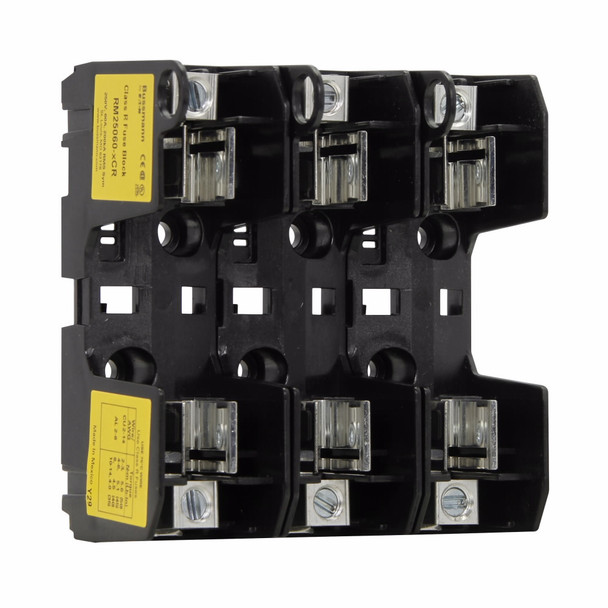

Bussmann RM25060-3CR Fuse Block
Bussmann Fuse Block, Modular, Series: RM Series, 250 V, 35 to 60 A, 3 Pole, Class: R, Fuse Holder Code: K, Box Lug/Slot Screw, 14 to 2 AWG Cu, 8 to 2 AWG Al Wire, DIN Rail/Panel Mount, 3 in Fuse Length, 0.81 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak LPN Series Time Delay, Limitron KTN-R Series Fast Acting, Fusetron FRN Series Time Delay Ferrule Fuse, Thermoplastic, 4.2 in L x 4 in W x 2.3 in H
Additional Description: BUSS-RM25060-3CR Fuse Block, Class R, 250V 60A, 3 Pole
Catalog Description: Eaton Bussmann Series RM modular fuse block, CR, 35-60 A, Three-pole, Class R, Box lug, 250 V
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 35 to 60 A |
| Class | R |
| Connection type | Box Lug/Slot Screw |
| Dimensions | 4.2 in L x 4 in W x 2.3 in H |
| Fuse Diameter | 0.81 |
| Fuse Diameter | 0.81 in |
| Fuse Length | 3 |
| Fuse Length | 3 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Panel |
| Number of Poles | 3 |
| Series | RM Series |
| Series | RM250 |
| Suitable For Use With | Low-Peak LPN Series Time Delay, Limitron KTN-R Series Fast Acting, Fusetron FRN Series Time Delay Ferrule Fuse |
| Suitable For Use With | Low-Peak™ LPN Series Time Delay, Limitron™ KTN-R Series Fast Acting, Fusetron™ FRN Series Time Delay Ferrule Fuse |
| Suitable For Use With | Low-Peak™ LPN Time Delay, Limitron™ KTN-R Fast Acting, Fusetron™ FRN Time Delay Ferrule Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Type | Modular Knife Blade |
| Voltage Rating | 250 |
| Voltage Rating | 250 V |
| Wire Size | 14 to 2 AWG Cu, 8 to 2 AWG Al |
| Wire Size | 14 to 2 AWG, 8 to 2 AWG |
