Description

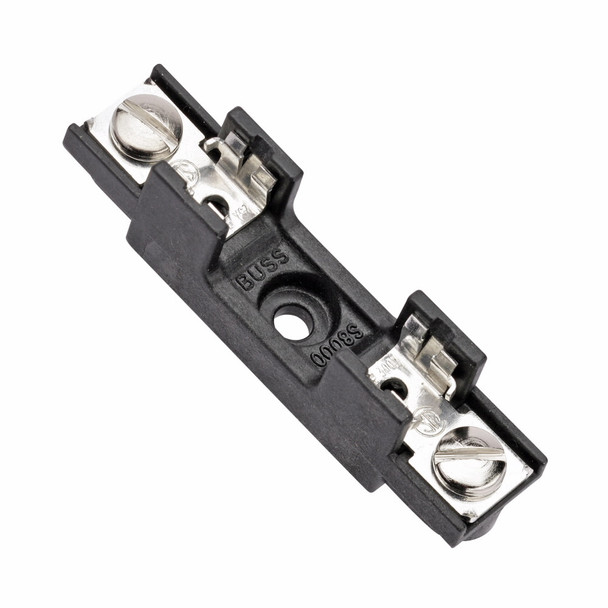

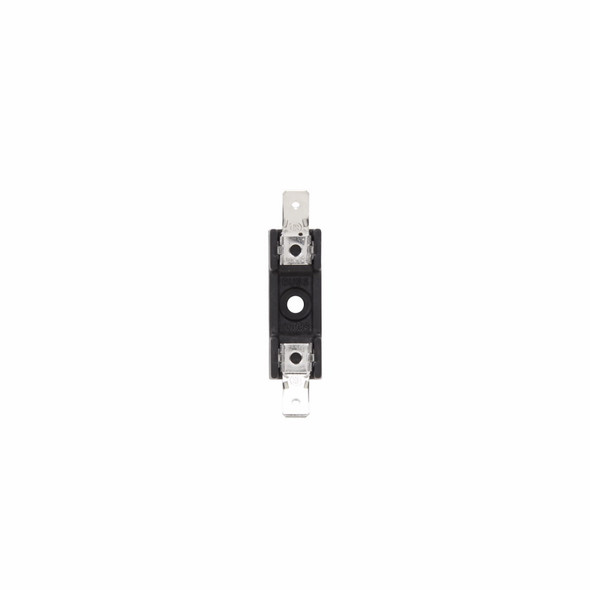

Bussmann S-8301-5-R Fuse Block
Bussmann Fuse Block, Series: 8300, 300 VAC/VDC, 25/30 A, 5 Pole, Straight Screw Connection, Bolted-In Mounting, 1-1/4 in Fuse Length, 1/4 in Diameter Fuse, 130 deg C, Thermoplastic, Black, 3 in L Dimensions
Additional Description: BUSS-S-8301-5-R BUSS FUSEBLOCK
Catalog Description: BUSS FUSEBLOCK
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 25/30 |
| Amperage Rating | 25/30 A |
| Color | Black |
| Connection type | Straight Screw |
| Dimensions | 3 in L |
| Fuse Diameter | 1/4 |
| Fuse Diameter | 1/4 in |
| Fuse Length | 1-1/4 |
| Fuse Length | 1-1/4 in |
| Material | Thermoplastic |
| Mounting type | Bolted-In |
| Number of Poles | 5 |
| Series | 8300 |
| Temperature Rating (Degrees F) | 130 |
| Temperature Rating (Degrees F) | 130 deg C |
| Voltage Rating | 300 |
| Voltage Rating | 300 VAC/VDC |
