Description

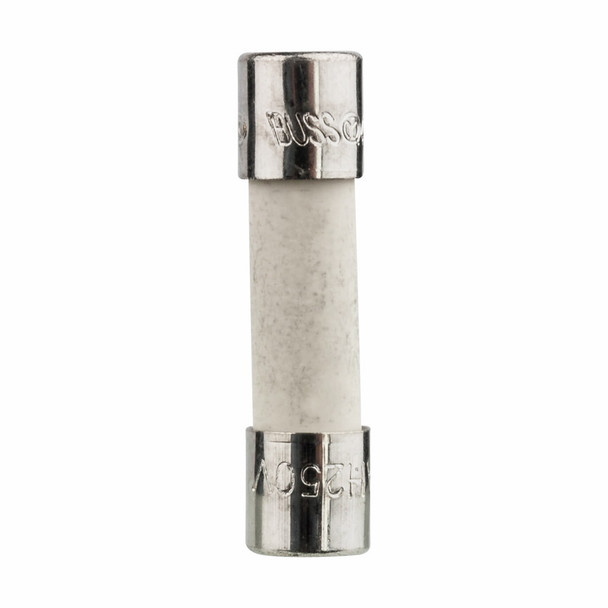

Bussmann S505-800-R Time Delay Fuse
Bussmann Time Delay Fuse, Series: S505, Non-Indicating, Non-Rejection, 800 mA, 250 VAC, 1.5 kA Interrupt, 50 Hz Frequency, 20 to 300 ms at 10 A Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 5.2 mm Dia x 20 mm L Body
Additional Description: BUSS-S505-800-R (N) S505 800MA BUSS FUSE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 800MA 250V 5mm x 20mm RoHS Compliant Ceramic, Time Delay Fuse
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 800 |
| Amperage Rating | 800 mA |
| Body Type | Cylindrical |
| Frequency Rating | 50 |
| Frequency Rating | 50 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 1.5 |
| Interrupt Rating | 1.5 kA |
| Interrupt Rating | 1.5 kA at 250 VAC |
| Material | Brass/Ceramic |
| Material | Ceramic |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 20 to 300 |
| Response Time | 20 to 300 ms |
| Series | S505 |
| Terminal Type | Ferrule |
| Type | High Breaking |
| Type | High Breaking Capacity |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
| Voltage Rating | 250 VAC/32 VDC |
