Description

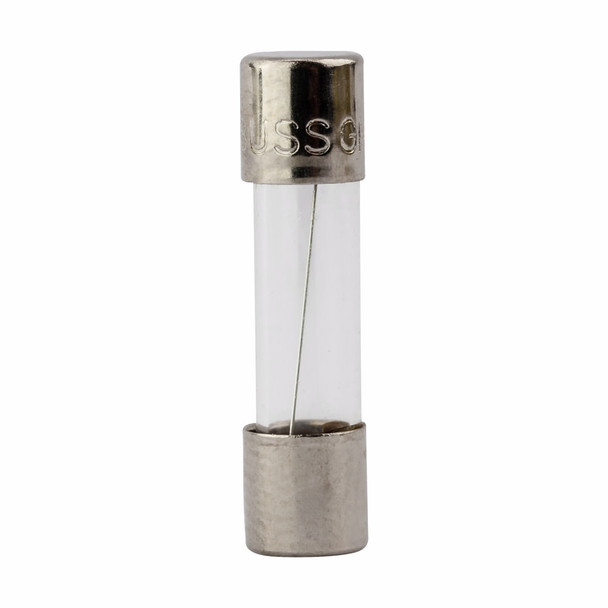

Bussmann S506-12.5-R Time Delay Fuse
Bussmann Time Delay Fuse, Low Breaking, Series: S506, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 12.5 A, 250 VAC, 125 A Interrupt, 50 Hz, Ferrule Terminal, Holder Mount, Cylindrical Body, Single Element, Glass, 5 mm Dia x 20 mm L Body Size
Additional Description: BUSS-S506-12.5-R S506 12.5A BUSS FUSE
Catalog Description: 12.5AMP 250V TD GLS FUSE
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 12.5 |
| Amperage Rating | 12.5 A |
| Body Type | Cylindrical |
| Frequency Rating | 50 |
| Frequency Rating | 50 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 125 |
| Interrupt Rating | 125 A |
| Material | Glass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | S506 |
| Terminal Type | Ferrule |
| Type | Low Breaking |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
