Description

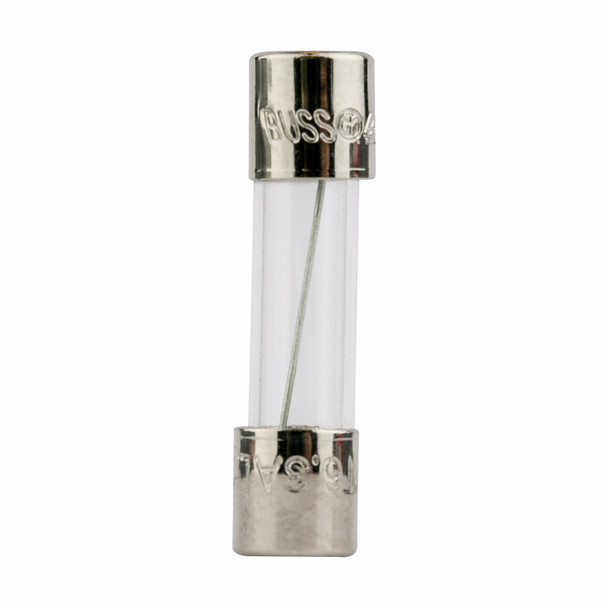

Bussmann S506-6.3-R Time Delay Fuse
Bussmann Time Delay Fuse, Low Breaking, Series: S506, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 6.3 A, 250 VAC, 63 A Interrupt, 50 Hz, Ferrule Terminal, Holder Mount, Cylindrical Body, Single Element, Glass, 5.2 mm Dia x 20 mm L Body Size
Additional Description: BUSS-S506-6.3-R (N) S506 6.3A BUSS FUSE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 6.3A 250V 5mm x 20mm RoHS Compliant Glass, Time Delay Fuse
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 6.3 |
| Amperage Rating | 6.3 A |
| Body Type | Cylindrical |
| Frequency Rating | 50 |
| Frequency Rating | 50 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 63 |
| Interrupt Rating | 63 A |
| Material | Glass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | S506 |
| Terminal Type | Ferrule |
| Type | Low Breaking |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
