Description

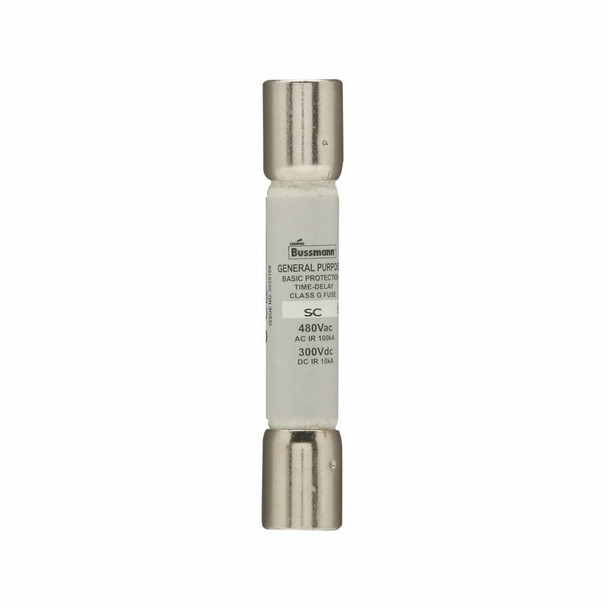

Bussmann SC-40 Time Delay Fuse
Bussmann Fuse, Current Limiting Time Delay, Series: SC Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 40 A, 480 VAC, 100/10 kAIC Interrupt, Class: G, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 0.41 in Dia x 2.25 in L Body Size
Additional Description: BUSS-SC-40 BUSS SC FUSE CLASS G CLASS G
Catalog Description: Eaton Bussmann series SC fuse, Current-limiting time-delay fuse, Rejection style, 40 A, Class G, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 100 kAIC at 480 Vac,10 kAIC at 300 Vdc, Standard, 480 V, 300 Vdc
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 40 |
| Amperage Rating | 40 A |
| Body Type | Cylindrical |
| Class | G |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100/10 |
| Interrupt Rating | 100/10 kAIC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 12 |
| Response Time | 12 s at 200% |
| Series | SC Series |
| Terminal Type | Ferrule |
| Terminal Type | Ferrule End |
| Type | Current Limiting |
| Type | Current Limiting Time Delay |
| Voltage Rating | 480 VAC |
| Voltage Rating | 480 VAC/300 VDC |
