Description

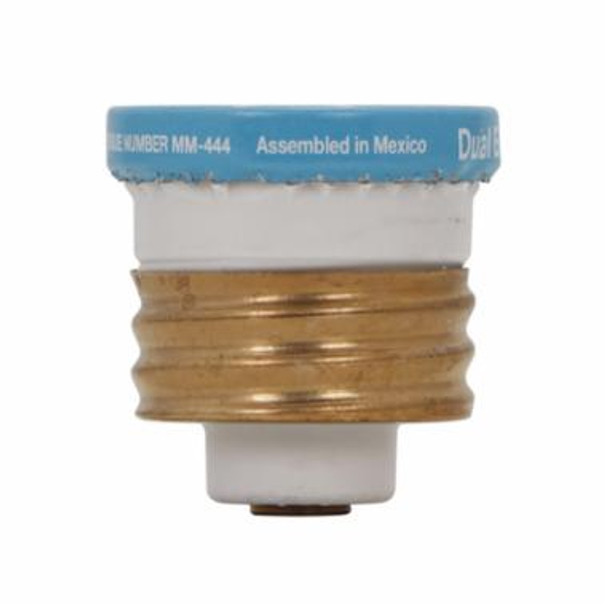

Bussmann T-4 Plug Fuse
Bussmann Fusetron Plug Fuse, Heavy Duty Low Voltage Time Delay, Series: T Series, Indicating/Non-Indicating: Non-Indicating, 4 A, 125 VAC, 10 kAIC Interrupt, 10 kA Short Circuit Current Rating, Stud Terminal, Threaded Mount, Edison Base/Round Body Type, Dual Element, Plastic Body/Brass Thread, 1.16 in L x 0.72 in W x 1.88 in H Body Size
Additional Description: BUSS-T-4 FUSETRON DUAL ELEMENT
Catalog Description: Eaton Bussmann series Type T plug fuse, plug fuse, time delay, heavy duty, 4 A, 125 Vac, 10 kAIC (RMS Symmetrical) interrupt rating, 10 kA short circuit rating, threaded mount, duel element, plastic body, brass thread, edison base
Specifications
| UNSPSC | 39121605 |
|---|---|
| Amperage Rating | 4 |
| Amperage Rating | 4 A |
| Body Type | Edison Base/Round |
| Body Type | Round |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 10 |
| Interrupt Rating | 10 kAIC |
| Material | Plastic |
| Material | Plastic Body/Brass Thread |
| Mounting type | Threaded |
| Rejection/Non-Rejection | Non-Rejection |
| Series | T Series |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Terminal Type | Stud |
| Type | Heavy Duty Low Voltage Time Delay |
| Type | Type T Heavy Duty Time Delay |
| Voltage Rating | 125 |
| Voltage Rating | 125 VAC |
