Description

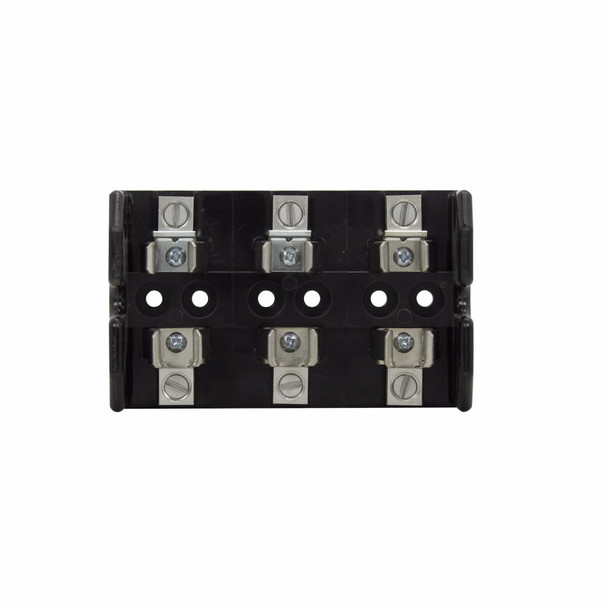

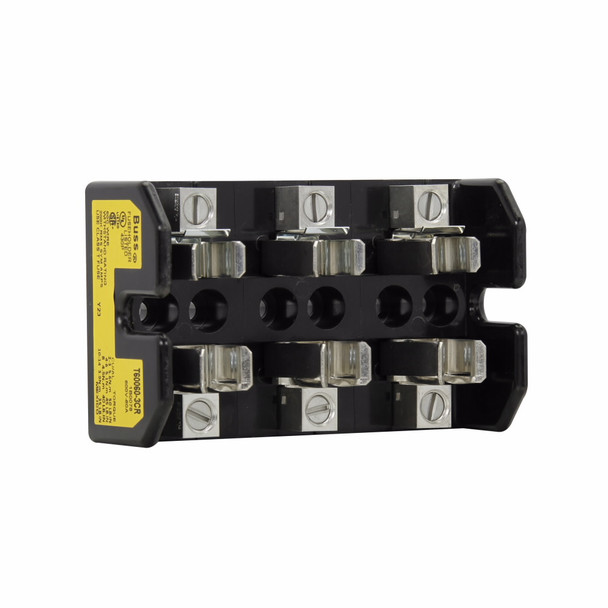

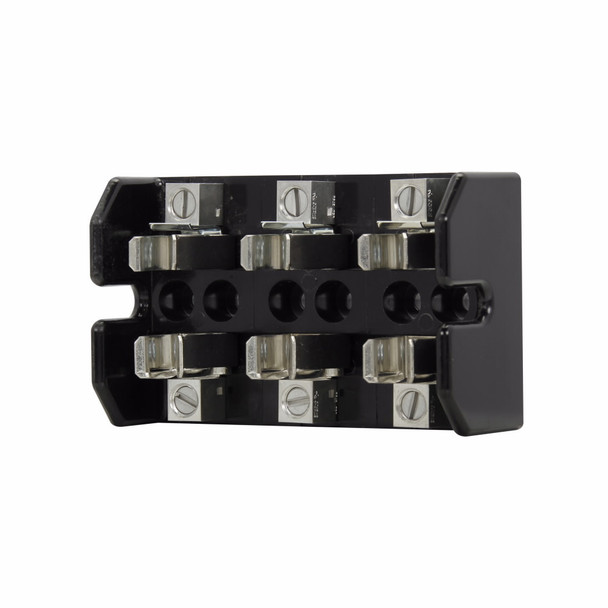

Bussmann T60060-3CR Fuse Block
Bussmann Fuse Block, Modular Open, Series: T600, 600 VAC/VDC, 31 to 60 A, 3 Pole, Class: T, Box Lug, 2 AWG Wire, Chassis Mount, 1.56 in Fuse Length, 0.81 in Fuse Dia, For Use With: JJS Series Cartridge Fuse, Glass Polyester, 2.94 in L x 4.86 in W x 1.75 in H
Additional Description: BUSS-T60060-3CR BUSS FUSEBLOCK WAS 1B0078 T60060-3CR-BN
Catalog Description: Eaton Bussmann series Class T modular fuse block, CR, 600 Vac/Vdc or less individual control circuits, 31-60 A, Three-pole, Class T, Box lug, 200 kAIC, Glass polyester, #2 AWG Cu/Al
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 31 to 60 |
| Amperage Rating | 31 to 60 A |
| Class | T |
| Color | Black |
| Connection type | Box Lug |
| Dimensions | 2.94 in L x 4.86 in W x 1.75 in H |
| Fuse Diameter | 0.81 |
| Fuse Diameter | 0.81 in |
| Fuse Diameter | 1 |
| Fuse Length | 1.56 |
| Fuse Length | 1.56 in |
| Material | Glass Polyester |
| Mounting type | Chassis |
| Number of Poles | 3 |
| Series | T600 |
| Suitable For Use With | JJS Cartridge Fuse |
| Suitable For Use With | JJS Class T Fuse |
| Suitable For Use With | JJS Series Cartridge Fuse |
| Type | Modular Open |
| Type | Open |
| Type | Open Style |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 14 to 2 |
| Wire Size | 2 |
| Wire Size | 2 AWG |
