Description

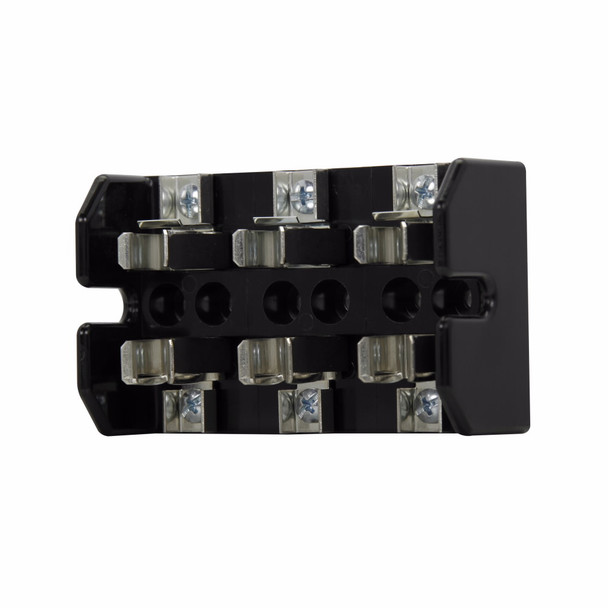

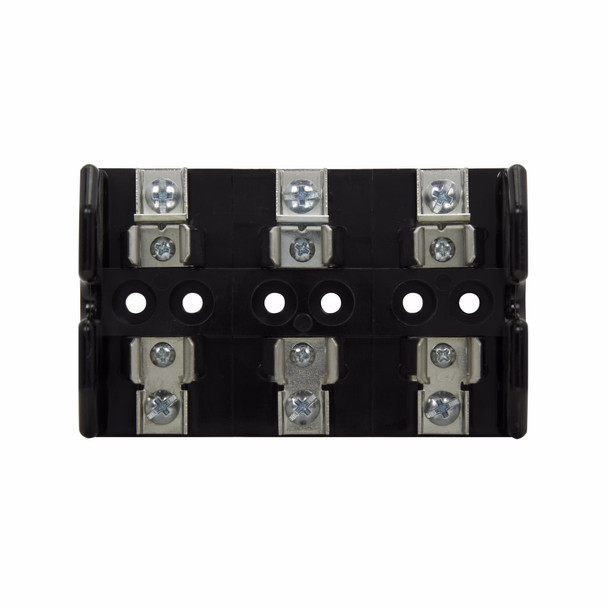

Bussmann T60060-3SR Fuse Block
Bussmann Fuse Block, Modular Open, Series: T600, 600 VAC/VDC, 31 to 60 A, 3 Pole, Class: T, Screw Terminal, 10 AWG Wire, Chassis Mount, 1.56 in Fuse Length, 0.81 in Fuse Dia, For Use With: JJS Series Cartridge Fuse, Glass Polyester, 2.94 in L x 4.86 in W x 1.75 in H
Additional Description: BUSS-T60060-3SR BUSS CLASS T FUSEBLOCK
Catalog Description: Eaton Bussmann series Class T modular fuse block, 600 Vac/Vdc or Less Control Systems, 31-60 A, Class T, 200 kA, Screw, 200 kAIC, Glass polyester, 600 Vac/dc, #10 AWG Cu
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 31 to 60 |
| Amperage Rating | 31 to 60 A |
| Class | T |
| Color | Black |
| Connection type | Screw |
| Connection type | Screw Terminal |
| Connection type | Terminal Screw |
| Dimensions | 2.94 in L x 4.86 in W x 1.75 in H |
| Fuse Diameter | 0.81 |
| Fuse Diameter | 0.81 in |
| Fuse Diameter | 1 |
| Fuse Length | 1.56 |
| Fuse Length | 1.56 in |
| Material | Glass Polyester |
| Mounting type | Chassis |
| Number of Poles | 3 |
| Series | T600 |
| Suitable For Use With | JJS Cartridge Fuse |
| Suitable For Use With | JJS Class T Fuse |
| Suitable For Use With | JJS Series Cartridge Fuse |
| Type | Modular Open |
| Type | Open |
| Type | Open Style |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 10 |
| Wire Size | 10 AWG |
| Wire Size | 18 to 10 |
