Description

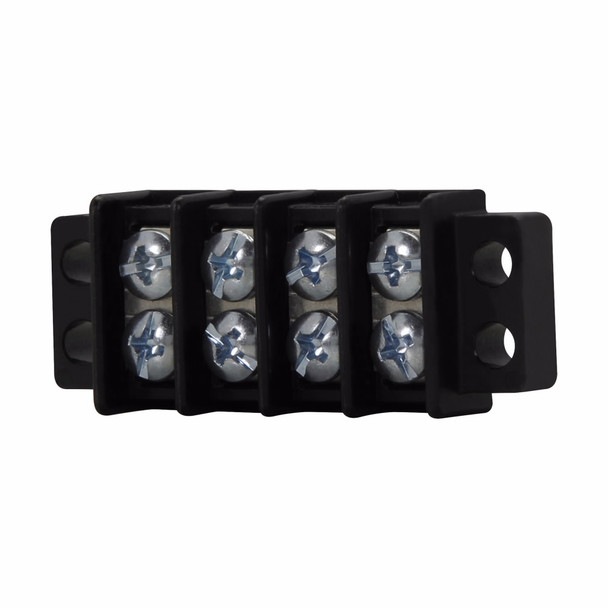

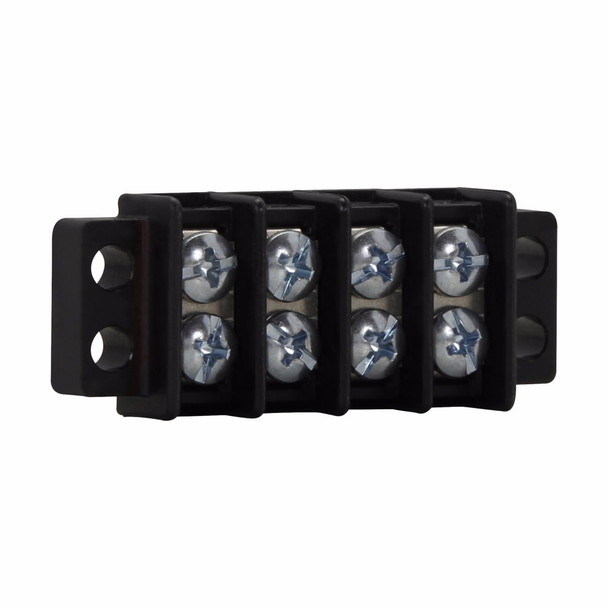

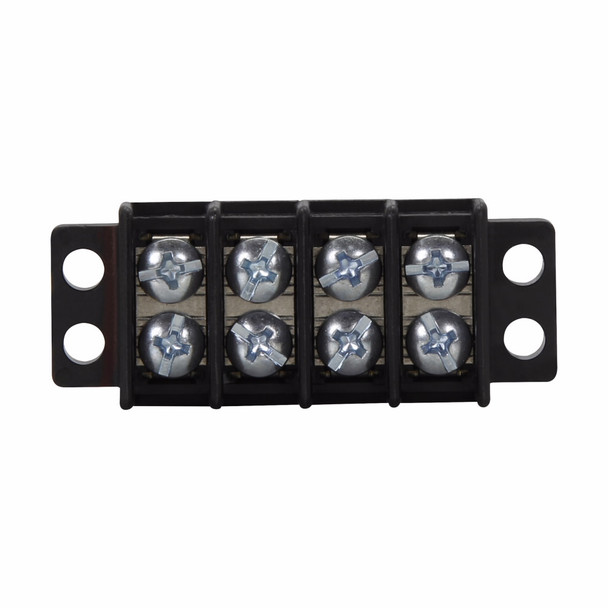

Bussmann TB100-04SP Terminal Block
Bussmann Terminal Block, Double Row, 300 V, 30 A, 4 Pole, 22 to 14 AWG Wire, Threaded Terminal, 3/8 in Spacing, 9 in-lb, Panel Mount, #6-32 Screw, -40 to 130 deg C, Brass/Steel/Thermoplastic, Black, 2.16 in L x 0.88 in W x 0.41 in H
Additional Description: UNDR-TB100-04SP (N) TERMINAL BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann TB100 series panel mount terminal block connector, Breakdown voltage 3600V, 300V, 30A, Double row, barrier, Four-pole, #6-32 TPI Screw, Screw, Black, Tin-plated brass terminal, Zinc-plated Steel SEMS philslot screw
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Color | Black |
| Connection type | #6-32 Screw |
| Connection type | Screw |
| Dimensions | 2.16 in L x 0.88 in W x 0.41 in H |
| Material | Brass/Steel/Thermoplastic |
| Material | Thermoplastic |
| Mounting type | Panel |
| Number of Poles | 4 |
| Spacing | 3/8 |
| Spacing | 3/8 in |
| Temperature Rating (Degrees F) | -40 to 130 |
| Temperature Rating (Degrees F) | -40 to 130 deg C |
| Terminal Type | Threaded |
| Torque Rating | 9 |
| Torque Rating | 9 in-lb |
| Type | Double Row |
| Voltage Rating | 300 |
| Voltage Rating | 300 V |
| Wire Size | 22 to 14 |
| Wire Size | 22 to 14 AWG |
