Description

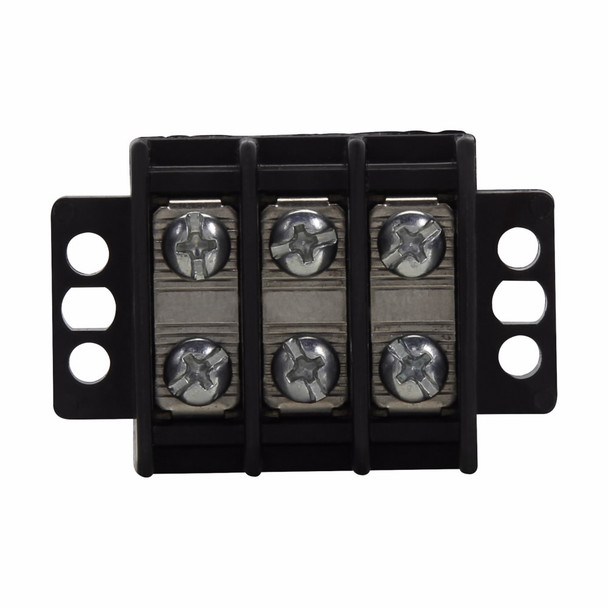

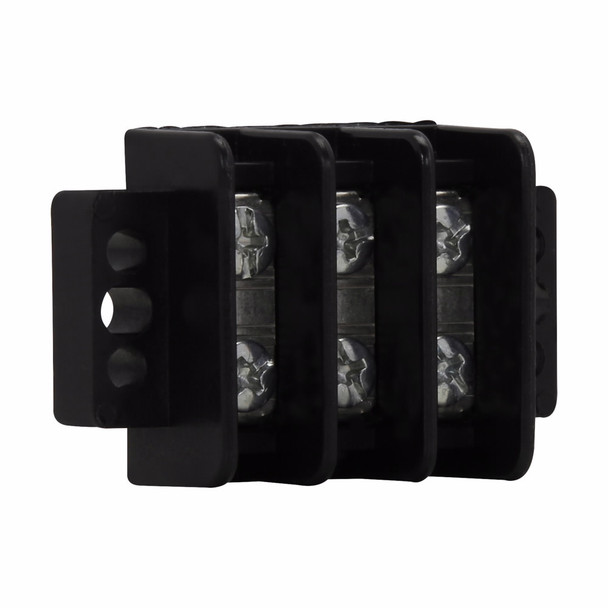

Bussmann TB200HB-15SP Terminal Block Strips and Barrier Block
Bussmann Terminal Block Strips and Barrier Block, High Barrier, 600 V, 30 A, 0.437 in Center Spacing, 9 in-lb, -40 to 130 deg C, Tin Plated Brass Terminal, Black
Additional Description: BUSS-TB200HB-15SP BARRIER BLOCK
Catalog Description: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800V, 600V, 30A, High barrier, 15-pole, Black, Tin-plated brass terminal, zinc-plated steel SEMS philslot screw
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Color | Black |
| Material | Tin Plated Brass Terminal |
| Material | Tin-Plated Brass Terminal |
| Temperature Rating (Degrees F) | -40 to 130 |
| Temperature Rating (Degrees F) | -40 to 130 deg C |
| Torque Rating | 9 |
| Torque Rating | 9 in-lb |
| Type | High Barrier |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
